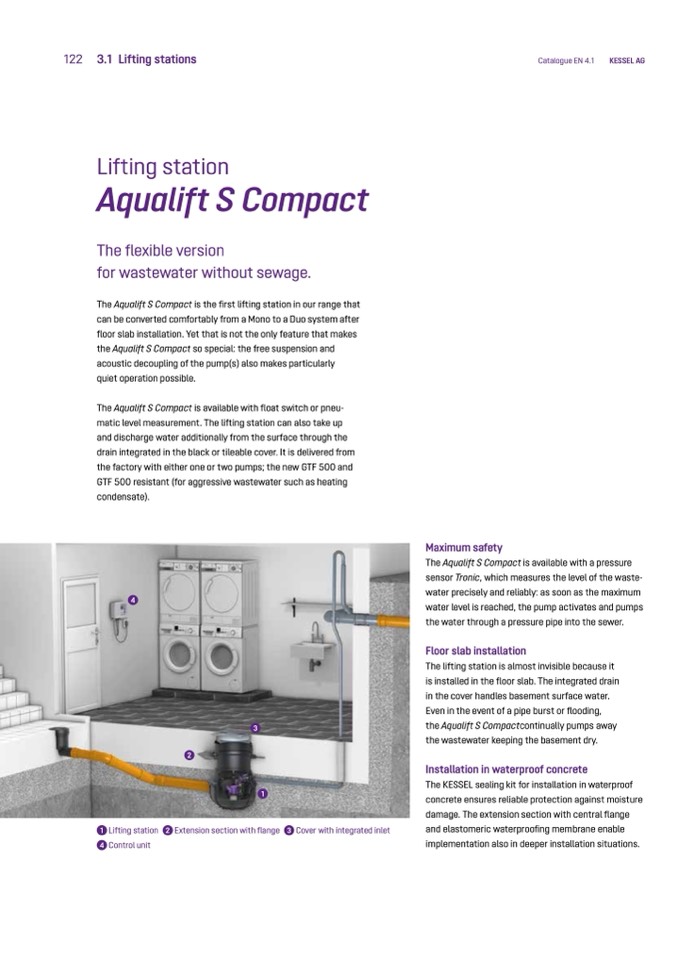

Aqualift S Compact

The Aqualift S Compact is the first lifting station in our range that

can be converted comfortably from a Mono to a Duo system after

floor slab installation. Yet that is not the only feature that makes

the Aqualift S Compact so special: the free suspension and

acoustic decoupling of the pump(s) also makes particularly

quiet operation possible.

The Aqualift S Compact is available with float switch or pneu-

matic level measurement. The lifting station can also take up

and discharge water additionally from the surface through the

drain integrated in the black or tileable cover. It is delivered from

the factory with either one or two pumps; the new GTF 500 and

GTF 500 resistant (for aggressive wastewater such as heating

condensate).

Maximum safety

The Aqualift S Compact is available with a pressure

sensor Tronic, which measures the level of the waste-

water precisely and reliably: as soon as the maximum

water level is reached, the pump activates and pumps

the water through a pressure pipe into the sewer.

Floor slab installation

The lifting station is almost invisible because it

is installed in the floor slab. The integrated drain

in the cover handles basement surface water.

Even in the event of a pipe burst or flooding,

the Aqualift S Compactcontinually pumps away

the wastewater keeping the basement dry.

Installation in waterproof concrete

The KESSEL sealing kit for installation in waterproof

concrete ensures reliable protection against moisture

damage. The extension section with central flange

and elastomeric waterproofing membrane enable

implementation also in deeper installation situations.

1 Lifting station

4 Control unit

2 Extension section with flange

3 Cover with integrated inlet
