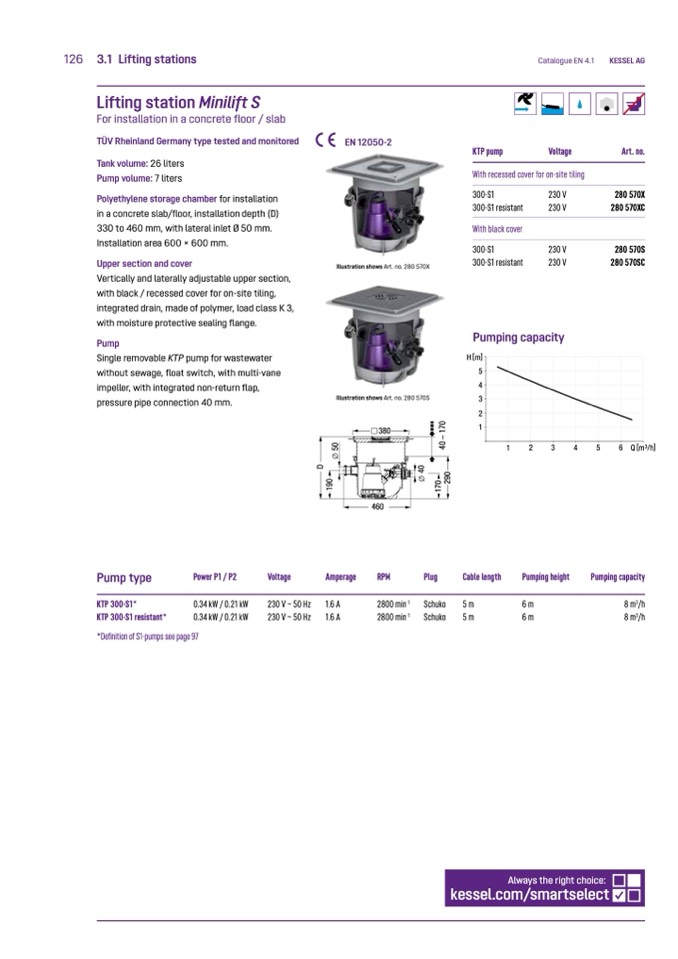

Lifting station Minilift S

For installation in a concrete floor / slab

TÜV Rheinland Germany type tested and monitored

Tank volume: 26 liters

Pump volume: 7 liters

Polyethylene storage chamber for installation

in a concrete slab/floor, installation depth (D)

330 to 460 mm, with lateral inlet Ø 50 mm.

Installation area 600 × 600 mm.

Upper section and cover

Vertically and laterally adjustable upper section,

with black / recessed cover for on-site tiling,

integrated drain, made of polymer, load class K 3,

with moisture protective sealing flange.

Pump

Single removable KTP pump for wastewater

without sewage, float switch, with multi-vane

impeller, with integrated non-return flap,

pressure pipe connection 40 mm.

EN 12050-2

Illustration shows Art. no. 280 570X

Illustration shows Art. no. 280 570S

380

460

KTP pump

Catalogue EN 4.1

Voltage

KESSEL AG

Art. no.

280 570X

280 570XC

280 570S

280 570SC

Pump type

Power P1 / P2

KTP300-S1*

0.34kW/0.21kW

230V~50Hz

1.6A

2800min

-1

Schuko

5m

6m

Voltage

Amperage

RPM

Plug

Cable length

Pumping height

Pumping capacity

8m

3

/h

8m

3

/h

KTP300-S1resistant*

0.34kW/0.21kW

230V~50Hz

1.6A

2800min

-1

Schuko

5m

6m

*Definition of S1-pumps see page 97

With recessed cover for on-site tiling

300-S1

300-S1 resistant

With black cover

300-S1

300-S1 resistant

230 V

230 V

230 V

230 V

Pumping capacity

H [m]

5

4

3

2

1

1

2

3

4

5

6Q[m

3

/h]

D

1

9

0

5

0

1

7

0

2

9

0

4

0

–

1

7

0

4

0
