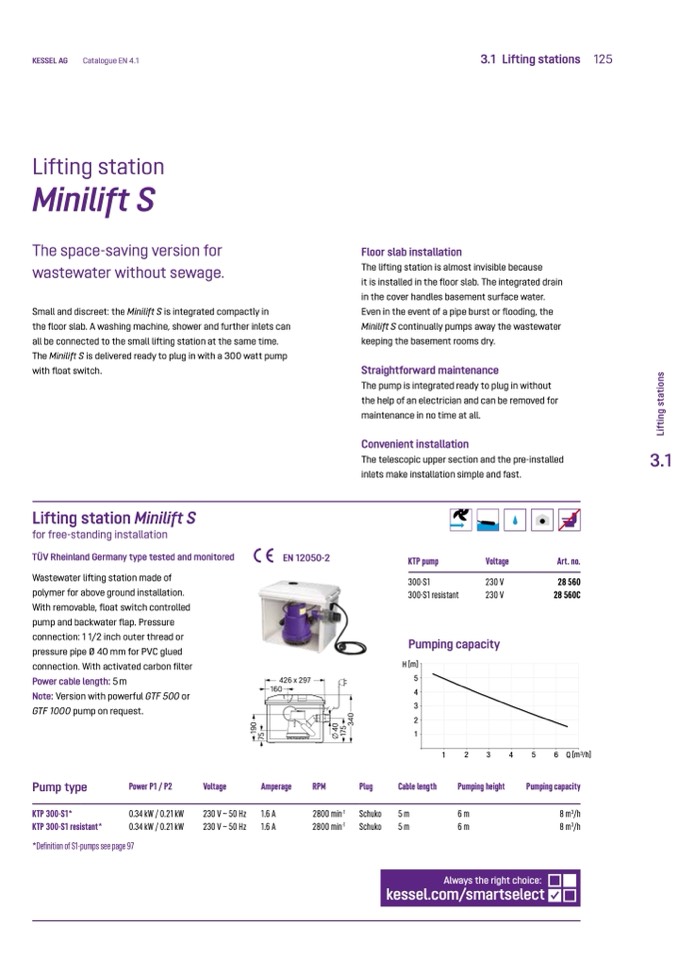

KESSEL AG
Catalogue EN 4.1
3.1 Lifting stations 125
Lifting station
Minilift S
The space-saving version for
wastewater without sewage.
Small and discreet: the Minilift S is integrated compactly in
the floor slab. A washing machine, shower and further inlets can
all be connected to the small lifting station at the same time.
The Minilift S is delivered ready to plug in with a 300 watt pump
with float switch.
Floor slab installation
The lifting station is almost invisible because
it is installed in the floor slab. The integrated drain
in the cover handles basement surface water.
Even in the event of a pipe burst or flooding, the
Minilift S continually pumps away the wastewater
keeping the basement rooms dry.
Straightforward maintenance
The pump is integrated ready to plug in without
the help of an electrician and can be removed for
maintenance in no time at all.
Convenient installation
The telescopic upper section and the pre-installed
inlets make installation simple and fast.
Lifting station Minilift S
for free-standing installation
TÜV Rheinland Germany type tested and monitored
EN 12050-2
426 x 297
160
Amperage
RPM
KTP pump
300-S1
300-S1 resistant
Voltage
230 V
230 V
Art. no.
28 560
28 560C
Wastewater lifting station made of
polymer for above ground installation.
With removable, float switch controlled
pump and backwater flap. Pressure
connection: 1 1/2 inch outer thread or
pressure pipe Ø 40 mm for PVC glued
connection. With activated carbon filter
Power cable length: 5 m
Note: Version with powerful GTF 500 or
GTF 1000 pump on request.
Pumping capacity
H [m]
5
4
3
2
1
Plug
Cable length
1
2
3
4
5
6Q[m
3
/h]
Pump type
Power P1 / P2
Voltage
Pumping height
Pumping capacity
8m
3
/h
8m
3
/h
KTP300-S1*
0.34kW/0.21kW
230V~50Hz
1.6A
2800min
-1
Schuko
5m
6m
KTP300-S1resistant*
0.34kW/0.21kW
230V~50Hz
1.6A
2800min
-1
Schuko
5m
6m
*Definition of S1-pumps see page 97
Always the right choice:
kessel.com/smartselect
