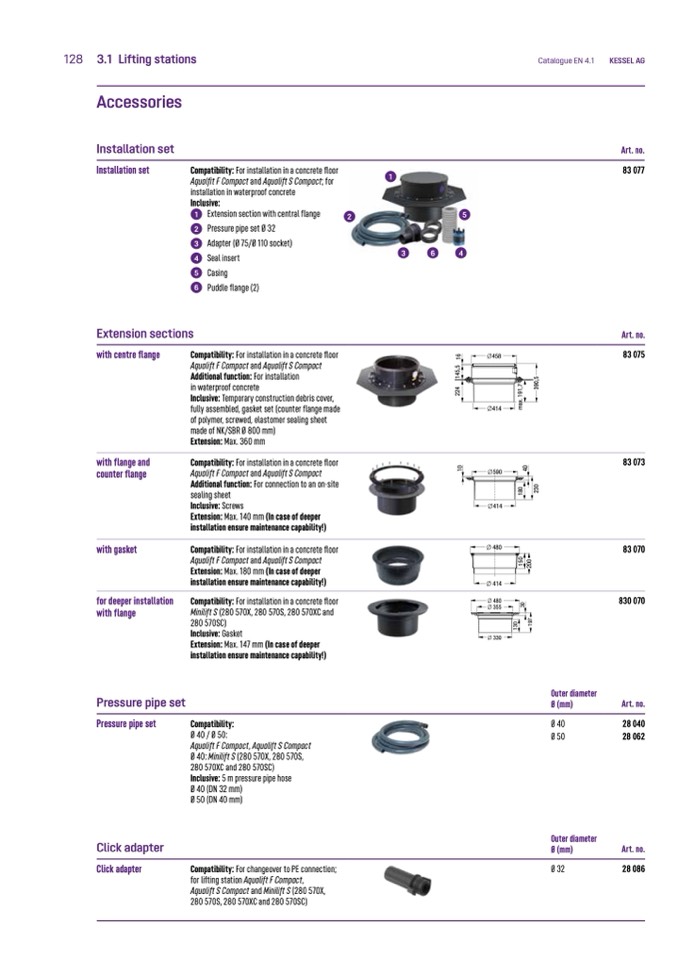

128 3.1 Lifting stations
Accessories
Catalogue EN 4.1
KESSEL AG
Art. no.
83 077
Installation set
Installation set
Compatibility: For installation in a concrete floor
Aqualfit F Compact and Aqualift S Compact; for
installation in waterproof concrete
Inclusive:
1 Extension section with central flange
2
2 Pressure pipe set Ø 32
3 Adapter (Ø 75/Ø 110 socket)
4 Seal insert
5 Casing
6 Puddle flange (2)
1
Extension sections
Art. no.
83 075
83 073
83 070
830 070
Art. no.
28 040
28 062
Art. no.
28 086
with centre flange
with flange and
counter flange
with gasket
for deeper installation
with flange
Pressure pipe set
Pressure pipe set
Click adapter
Click adapter
Compatibility: For installation in a concrete floor
Aqualift F Compact and Aqualift S Compact
Additional function: For installation
in waterproof concrete
Inclusive: Temporary construction debris cover,
fully assembled, gasket set (counter flange made
of polymer, screwed, elastomer sealing sheet
made of NK/SBR Ø 800 mm)
Extension: Max. 360 mm
Compatibility: For installation in a concrete floor
Aqualift F Compact and Aqualift S Compact
Additional function: For connection to an on-site
sealing sheet
Inclusive: Screws
Extension: Max. 140 mm (In case of deeper
installation ensure maintenance capability!)
Compatibility: For installation in a concrete floor
Aqualift F Compact and Aqualift S Compact
Extension: Max. 180 mm (In case of deeper
installation ensure maintenance capability!)
Compatibility: For installation in a concrete floor
Minilift S (280 570X, 280 570S, 280 570XC and
280 570SC)
Inclusive: Gasket
Extension: Max. 147 mm (In case of deeper
installation ensure maintenance capability!)
Compatibility:
Ø40/Ø50:
Aqualift F Compact, Aqualift S Compact
Ø 40: Minilift S (280 570X, 280 570S,
280 570XC and 280 570SC)
Inclusive: 5 m pressure pipe hose
Ø40(DN32mm)
Ø50(DN40mm)
Compatibility: For changeover to PE connection;
for lifting station Aqualift F Compact,
Aqualift S Compact and Minilift S (280 570X,
280 570S, 280 570XC and 280 570SC)
458
414
590
414
480
414
480
355
330
5
3
6
4
1
3
0
1
9
7
3
0
1
5
0
2
0
0
1
8
0
4
0
2
3
0
m
a
x
.
1
9
1
,
7
3
9
0
,
5
1
0
2
2
4
1
4
5
,
5
1
6
Outer diameter
Ø (mm)
Ø 40
Ø 50
Outer diameter
Ø (mm)
Ø 32
