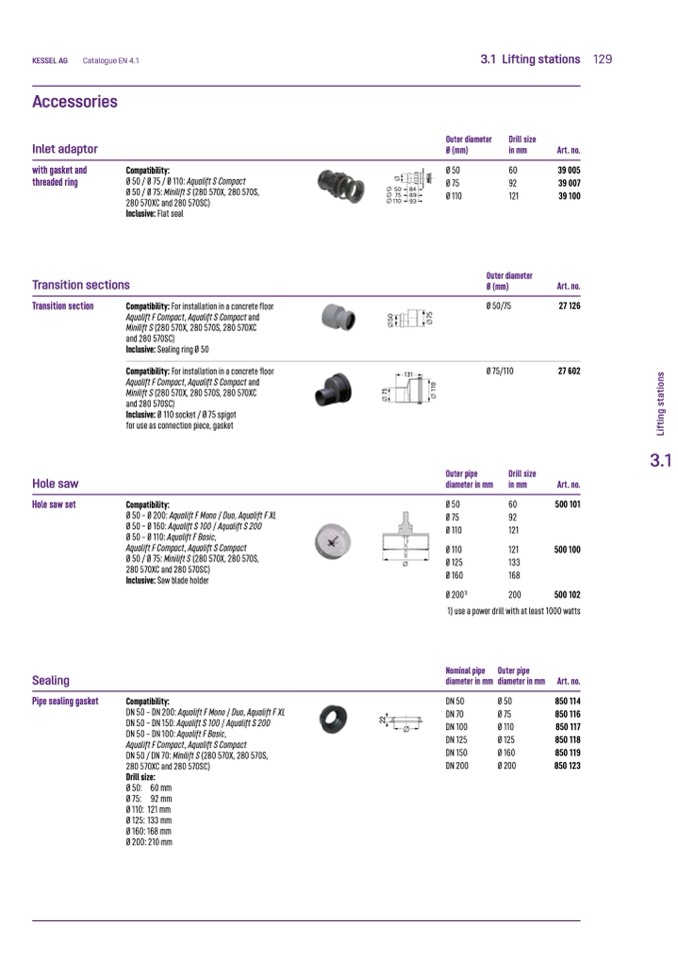

3.1 Lifting stations 129

Accessories

Inlet adaptor

with gasket and

threaded ring

Outer diameter

Ø (mm)

Ø50

Ø75

Ø 110

Compatibility:

Ø50/Ø75/Ø110:AqualiftSCompact

Ø50/Ø75:MiniliftS(280570X,280570S,

280 570XC and 280 570SC)

Inclusive: Flat seal

Ø 50

Ø 75

Ø110 93

Drill size

in mm

121

Outer diameter

Ø (mm)

Ø 50/75

Ø 75/110

Art. no.

39 005

39 007

39 100

Art. no.

27 126

27 602

Art. no.

500 101

500 100

Art. no.

850 114

850116

850 117

850 118

850 119

850 123

Transition sections

Transition section

Compatibility: For installation in a concrete floor

Aqualift F Compact, Aqualift S Compact and

Minilift S (280 570X, 280 570S, 280 570XC

and 280 570SC)

Inclusive: Sealing ring Ø 50

Compatibility: For installation in a concrete floor

Aqualift F Compact, Aqualift S Compact and

Minilift S (280 570X, 280 570S, 280 570XC

and 280 570SC)

Inclusive: Ø 110 socket / Ø 75 spigot

for use as connection piece, gasket

Compatibility:

Ø 50 – Ø 200: Aqualift F Mono / Duo, Aqualift F XL

Ø 50 – Ø 160: Aqualift S 100 / Aqualift S 200

Ø 50 – Ø 110: Aqualift F Basic,

Aqualift F Compact, Aqualift S Compact

Ø 50 / Ø 75: Minilift S (280 570X, 280 570S,

280 570XC and 280 570SC)

Inclusive: Saw blade holder

Compatibility:

DN 50 – DN 200: Aqualift F Mono / Duo, Aqualift F XL

DN 50 – DN 150: Aqualift S 100 / Aqualift S 200

DN 50 – DN 100: Aqualift F Basic,

Aqualift F Compact, Aqualift S Compact

DN 50 / DN 70: Minilift S (280 570X, 280 570S,

280 570XC and 280 570SC)

Drill size:

Ø 50: 60 mm

Ø 75: 92 mm

Ø 110: 121 mm

Ø 125: 133 mm

Ø 160: 168 mm

Ø 200: 210 mm

131

Hole saw

Hole saw set

Drill size

in mm

121

133

168

200

1) use a power drill with at least 1000 watts

Outer pipe

diameter in mm

Ø50

Ø75

Ø 110

Ø125

Ø 160

Sealing

Pipe sealing gasket

Nominal pipe

diameter in mm

DN 50

DN70

DN 100

DN 125

DN 150

DN 200

Outer pipe

diameter in mm

Ø50

Ø75

Ø 110

Ø 125

Ø 160

Ø 200

500 102
