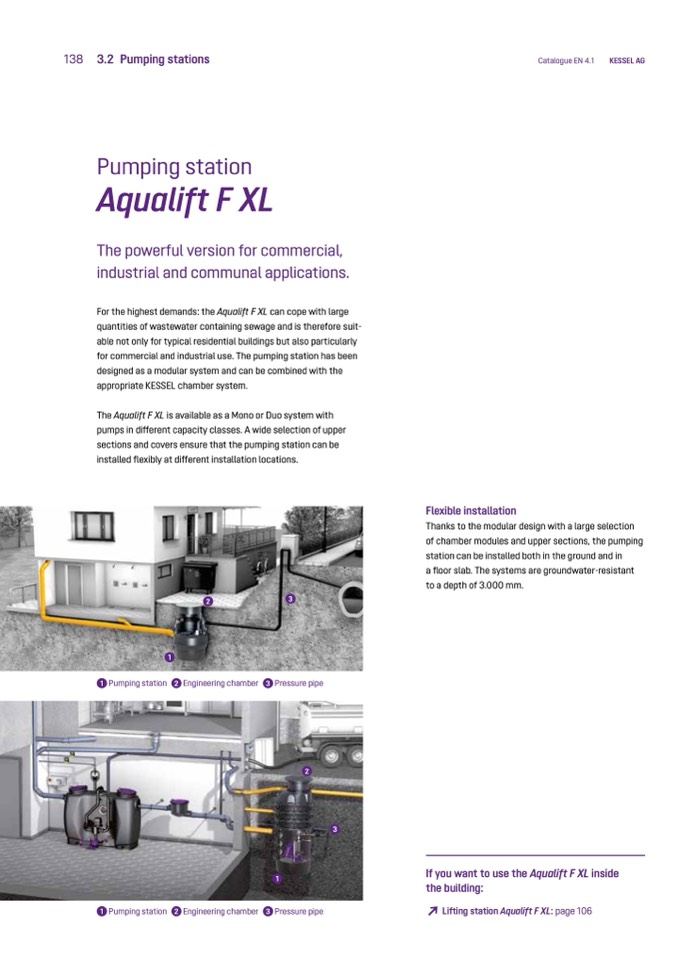

Pumping station

Aqualift F XL

The powerful version for commercial,

industrial and communal applications.

For the highest demands: the Aqualift F XL can cope with large

quantities of wastewater containing sewage and is therefore suit-

able not only for typical residential buildings but also particularly

for commercial and industrial use. The pumping station has been

designed as a modular system and can be combined with the

appropriate KESSEL chamber system.

The Aqualift F XL is available as a Mono or Duo system with

pumps in different capacity classes. A wide selection of upper

sections and covers ensure that the pumping station can be

installed flexibly at different installation locations.

Flexible installation

Thanks to the modular design with a large selection

of chamber modules and upper sections, the pumping

station can be installed both in the ground and in

a floor slab. The systems are groundwater-resistant

to a depth of 3.000 mm.

1 Pumping station

1

2

2 Engineering chamber

3

3 Pressure pipe

2

1

3 Pressure pipe

3

1 Pumping station

2 Engineering chamber

If you want to use the Aqualift F XL inside

the building:

↗

Lifting station Aqualift F XL: page 106
