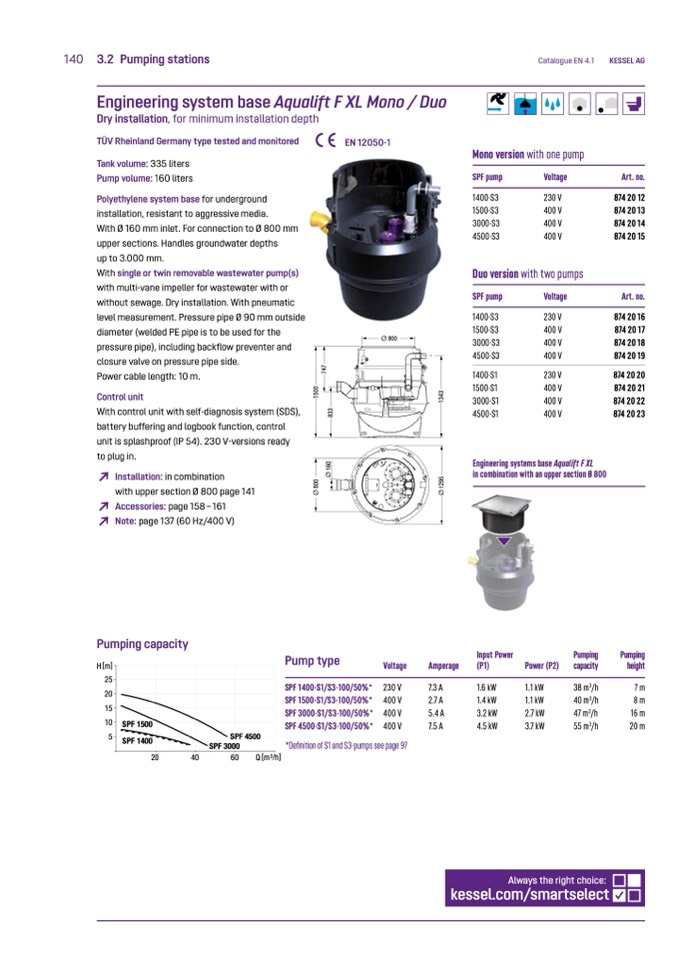

Engineering system base Aqualift F XL Mono / Duo

Catalogue EN 4.1

Mono version with one pump

KESSEL AG

Art. no.

874 20 12

874 20 13

874 20 14

874 20 15

Art. no.

874 20 16

874 20 17

874 20 18

874 20 19

874 20 20

874 20 21

874 20 22

874 20 23

Dry installation, for minimum installation depth

TÜV Rheinland Germany type tested and monitored

Tank volume: 335 liters

Pump volume: 160 liters

Polyethylene system base for underground

installation, resistant to aggressive media.

With Ø 160 mm inlet. For connection to Ø 800 mm

upper sections. Handles groundwater depths

up to 3.000 mm.

With single or twin removable wastewater pump(s)

with multi-vane impeller for wastewater with or

without sewage. Dry installation. With pneumatic

level measurement. Pressure pipe Ø 90 mm outside

diameter (welded PE pipe is to be used for the

pressure pipe), including backflow preventer and

closure valve on pressure pipe side.

Power cable length: 10 m.

Control unit

With control unit with self-diagnosis system (SDS),

battery buffering and logbook function, control

unit is splashproof (IP 54). 230 V-versions ready

to plug in.

EN 12050-1

↗

Installation: in combination

with upper section Ø 800 page 141

↗

Accessories: page 158 – 161

↗

Note: page 137 (60 Hz/400 V)

Pumping capacity

Engineering systems base Aqualift F XL

in combination with an upper section Ø 800

H [m]

25

20

15

10

5

SPF 1500

SPF 1400

20

40

Pump type

SPF 1400-S1/S3-100/50%*

SPF 1500-S1/S3-100/50%*

SPF 3000-S1/S3-100/50%*

SPF 4500-S1/S3-100/50%*

Voltage

230 V

400 V

400 V

400 V

Amperage

7.3A

2.7A

5.4 A

7.5A

Input Power

(P1)

1.6 kW

1.4 kW

3.2 kW

4.5 kW

Power (P2)

1.1 kW

1.1 kW

2.7kW

3.7kW

Pumping

capacity

38 m

3

/h

40 m

3

/h

47 m

3

/h

55 m

3

/h

Pumping

height

7m

8m

16m

20m

SPF 4500

SPF 3000

*Definition of S1 and S3-pumps see page 97

60

Q [m

3

/h]

Ø 800

SPF pump

1400-S3

1500-S3

3000-S3

4500-S3

1400-S1

1500-S1

3000-S1

4500-S1

Voltage

230 V

400 V

400 V

400 V

230 V

400 V

400 V

400 V

SPF pump

1400-S3

1500-S3

3000-S3

4500-S3

Voltage

230 V

400 V

400 V

400 V

Duo version with two pumps

Ø

8

0

0

1

5

0

0

Ø

1

2

9

5

1

3

4

3

Ø

1

6

0

7

4

7

8

3

3
