KESSEL AG

Catalogue EN 4.1

3.2 Pumping stations 141

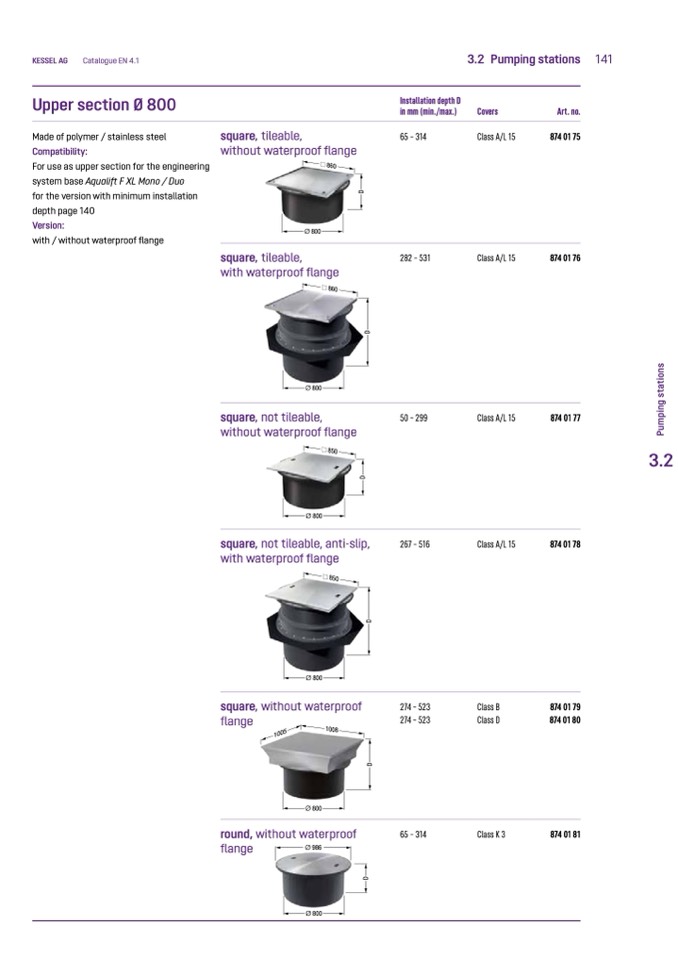

Upper section Ø 800

Made of polymer / stainless steel

Compatibility:

For use as upper section for the engineering

system base Aqualift F XL Mono / Duo

for the version with minimum installation

depth page 140

square, tileable,

without waterproof flange

Ø 800

square, tileable,

with waterproof flange

Ø 800

square, not tileable,

without waterproof flange

Ø 800

square, not tileable, anti-slip,

with waterproof flange

Ø 800

square, without waterproof

flange

Ø 800

round, without waterproof

Installation depth D

in mm (min./max.)

65–314

282 – 531

Covers

Class A/L 15

Class A/L 15

Art. no.

874 01 75

874 01 76

Version:

with / without waterproof flange

50–299

267 – 516

Class A/L 15

Class A/L 15

874 01 77

874 01 78

274 – 523

274 – 523

65–314

Class B

Class D

Class K 3

874 01 79

874 01 80

874 01 81

flange

Ø 986

Ø 800

3.2

860

860

850

850

1005

1008

D

D

D

D

D

D
