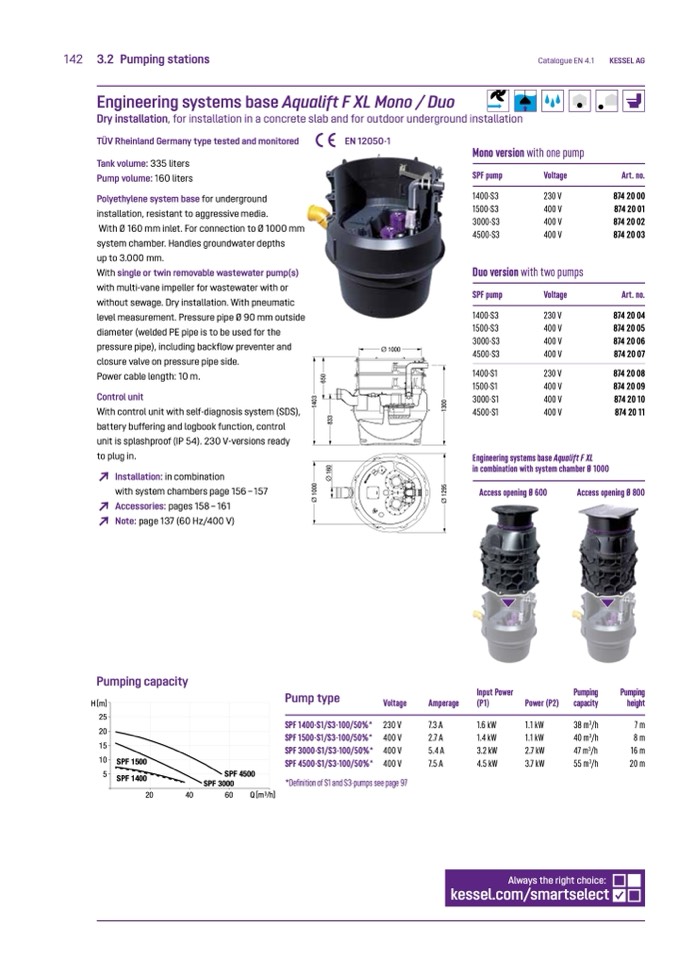

Engineering systems base Aqualift F XL Mono / Duo

Dry installation, for installation in a concrete slab and for outdoor underground installation

TÜV Rheinland Germany type tested and monitored

Tank volume: 335 liters

Pump volume: 160 liters

Polyethylene system base for underground

installation, resistant to aggressive media.

With Ø 160 mm inlet. For connection to Ø 1000 mm

system chamber. Handles groundwater depths

up to 3.000 mm.

With single or twin removable wastewater pump(s)

with multi-vane impeller for wastewater with or

without sewage. Dry installation. With pneumatic

level measurement. Pressure pipe Ø 90 mm outside

diameter (welded PE pipe is to be used for the

pressure pipe), including backflow preventer and

closure valve on pressure pipe side.

Power cable length: 10 m.

Control unit

With control unit with self-diagnosis system (SDS),

battery buffering and logbook function, control

unit is splashproof (IP 54). 230 V-versions ready

to plug in.

EN 12050-1

Mono version with one pump

↗

Installation: in combination

↗

with system chambers page 156 – 157

Accessories: pages 158 – 161

↗

Note: page 137 (60 Hz/400 V)

Engineering systems base Aqualift F XL

in combination with system chamber Ø 1000

Pumping capacity

Input Power

(P1)

1.6 kW

1.4 kW

3.2 kW

4.5 kW

Pumping

capacity

38 m

3

/h

40 m

3

/h

47 m

3

/h

55 m

3

/h

Pumping

height

7m

8m

16m

20m

H [m]

25

20

15

10

5

SPF 1500

SPF 1400

20

40

Pump type

SPF 1400-S1/S3-100/50%*

SPF 1500-S1/S3-100/50%*

SPF 3000-S1/S3-100/50%*

SPF 4500-S1/S3-100/50%*

SPF 4500

SPF 3000

*Definition of S1 and S3-pumps

60

Q [m

3

/h]

Voltage

230 V

400 V

400 V

400 V

see page 97

Amperage

7.3A

2.7A

5.4 A

7.5A

Power (P2)

1.1 kW

1.1 kW

2.7kW

3.7kW

Ø 1000

SPF pump

1400-S3

1500-S3

3000-S3

4500-S3

1400-S1

1500-S1

3000-S1

4500-S1

Voltage

230 V

400 V

400 V

400 V

230 V

400 V

400 V

400 V

SPF pump

1400-S3

1500-S3

3000-S3

4500-S3

Voltage

230 V

400 V

400 V

400 V

Art. no.

874 20 00

874 20 01

874 20 02

874 20 03

Art. no.

874 20 04

874 20 05

874 20 06

874 20 07

874 20 08

874 20 09

874 20 10

874 20 11

Duo version with two pumps

Access opening Ø 600

Access opening Ø 800

Ø

1

0

0

0

1

4

0

3

Ø

1

2

9

5

1

3

0

0

Ø

1

6

0

8

3

3

6

5

0
