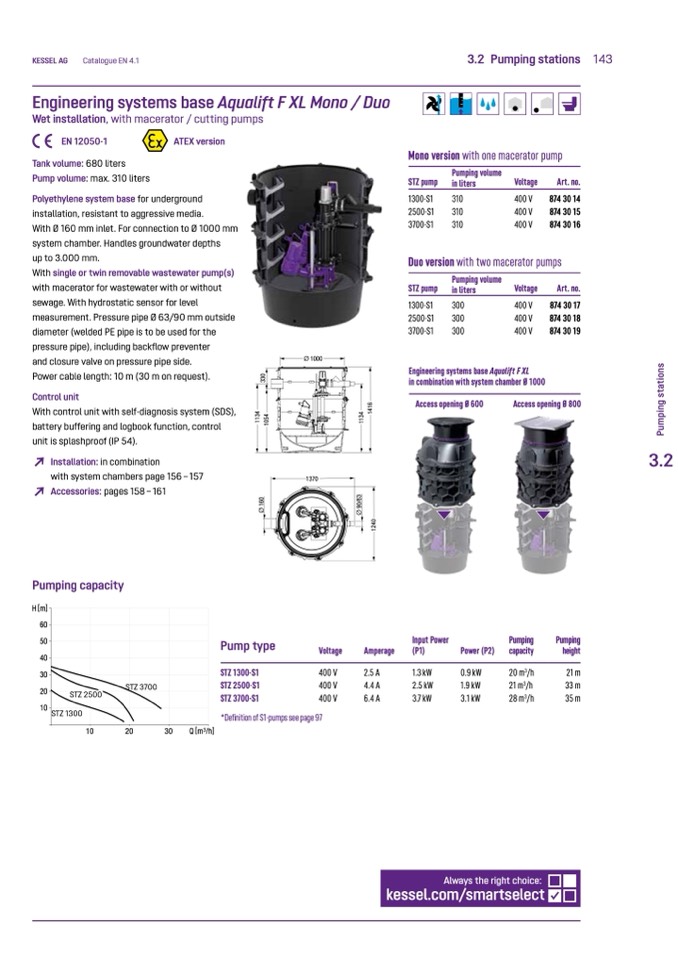

Engineering systems base Aqualift F XL Mono / Duo
Wet installation, with macerator / cutting pumps
EN 12050-1
Tank volume: 680 liters
Pump volume: max. 310 liters
ATEX version
Polyethylene system base for underground
installation, resistant to aggressive media.
With Ø 160 mm inlet. For connection to Ø 1000 mm
system chamber. Handles groundwater depths
up to 3.000 mm.
With single or twin removable wastewater pump(s)
with macerator for wastewater with or without
sewage. With hydrostatic sensor for level
measurement. Pressure pipe Ø 63/90 mm outside
diameter (welded PE pipe is to be used for the
pressure pipe), including backflow preventer
and closure valve on pressure pipe side.
Power cable length: 10 m (30 m on request).
Control unit
With control unit with self-diagnosis system (SDS),
battery buffering and logbook function, control
unit is splashproof (IP 54).
↗
Installation: in combination
with system chambers page 156 – 157
STZ pump
1300-S1
2500-S1
3700-S1
Pumping volume
in liters
310
310
310
Voltage
400 V
400 V
400 V
Art. no.
874 30 14
874 30 15
874 30 16
↗
Accessories: pages 158 – 161
Pumping capacity
H [m]
60
50
40
30
20
Pump type
Input Power
(P1)
STZ 2500
10
STZ 1300
STZ 3700
20
30
STZ 2500-S1
400 V
STZ 3700-S1
400 V
*Definition of S1-pumps see page 97
4.4 A
6.4 A
2.5 kW
3.7 kW
1.9 kW
3.1 kW
10
Q [m
3
/h]
Voltage
STZ1300-S1
400V
2.5A
Power (P2)
Ø 1000
1370
Engineering systems base Aqualift F XL
in combination with system chamber Ø 1000
Amperage
Mono version with one macerator pump
Duo version with two macerator pumps
STZ pump
1300-S1
2500-S1
3700-S1
Pumping volume
in liters
300
300
300
Voltage
400 V
400 V
400 V
Art. no.
874 30 17
874 30 18
874 30 19
Ø
9
0
/
6
3
1
2
4
0
1
1
3
4
1
4
1
6
Ø
1
6
0
1
1
3
4
1
0
5
4
3
3
0
P
u
m
p
i
n
g
s
t
a
t
i
o
n
s
Access opening Ø 600
Access opening Ø 800
Pumping
Pumping
capacity
height
20m
3
/h
21m
21 m
3
/h
33m
28 m
3
/h
35m
1.3kW
0.9kW
