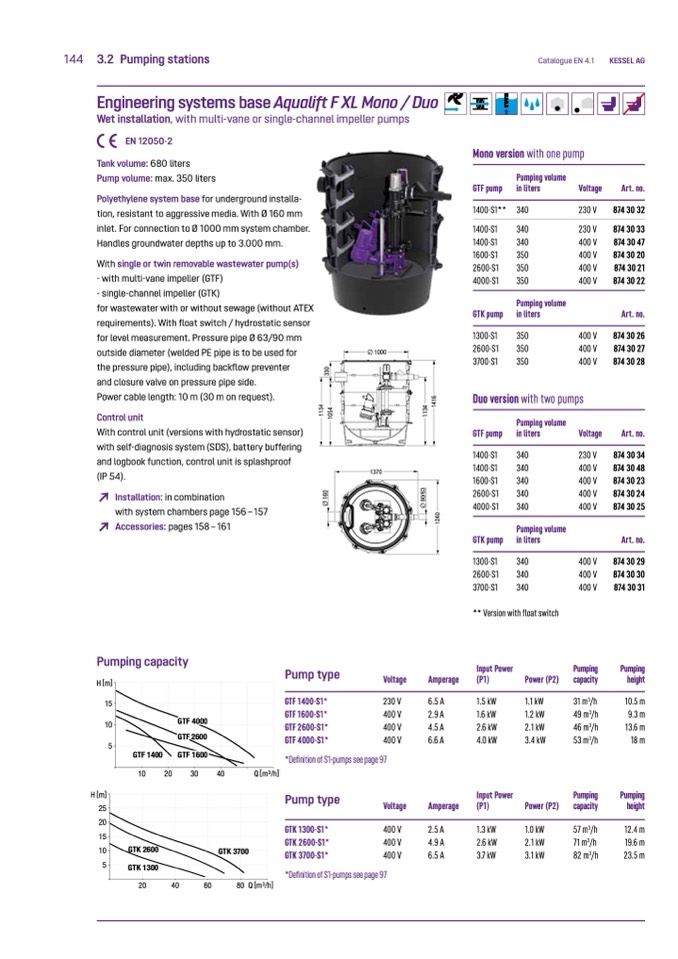

144 3.2 Pumping stations

Engineering systems base Aqualift F XL Mono / Duo

Catalogue EN 4.1

Mono version with one pump

KESSEL AG

Art. no.

874 30 32

874 30 33

874 30 47

874 30 20

874 30 21

874 30 22

Art. no.

874 30 26

874 30 27

874 30 28

Art. no.

874 30 34

874 30 48

874 30 23

874 30 24

874 30 25

Art. no.

874 30 29

874 30 30

874 30 31

Pumping

height

10.5 m

9.3 m

13.6 m

18m

Pumping

height

12.4 m

19.6 m

23.5 m

Wet installation, with multi-vane or single-channel impeller pumps

EN 12050-2

Tank volume: 680 liters

Pump volume: max. 350 liters

Polyethylene system base for underground installa-

tion, resistant to aggressive media. With Ø 160 mm

inlet. For connection to Ø 1000 mm system chamber.

Handles groundwater depths up to 3.000 mm.

With single or twin removable wastewater pump(s)

- with multi-vane impeller (GTF)

- single-channel impeller (GTK)

for wastewater with or without sewage (without ATEX

requirements). With float switch / hydrostatic sensor

for level measurement. Pressure pipe Ø 63/90 mm

outside diameter (welded PE pipe is to be used for

the pressure pipe), including backflow preventer

and closure valve on pressure pipe side.

Power cable length: 10 m (30 m on request).

Control unit

With control unit (versions with hydrostatic sensor)

with self-diagnosis system (SDS), battery buffering

and logbook function, control unit is splashproof

(IP 54).

Ø 1000

1370

GTF pump

1400-S1**

1400-S1

1400-S1

1600-S1

2600-S1

4000-S1

GTK pump

1300-S1

2600-S1

3700-S1

Pumping volume

in liters

340

340

340

350

350

350

Pumping volume

in liters

350

350

350

Voltage

230 V

230 V

400 V

400 V

400 V

400 V

400 V

400 V

400 V

↗

Installation: in combination

with system chambers page 156 – 157

GTF pump

1400-S1

1400-S1

1600-S1

2600-S1

4000-S1

GTK pump

1300-S1

2600-S1

3700-S1

Pumping volume

in liters

340

340

340

340

340

Pumping volume

in liters

340

340

340

Voltage

230 V

400 V

400 V

400 V

400 V

400 V

400 V

400 V

Pumping

capacity

31 m

3

/h

49 m

3

/h

46 m

3

/h

53 m

3

/h

Pumping

capacity

57 m

3

/h

71 m

3

/h

82 m

3

/h

↗

Accessories: pages 158 – 161

Pumping capacity

Pump type

GTF 1400-S1*

GTF 1600-S1*

GTF 2600-S1*

GTF 4000-S1*

Input Power

(P1)

1.5 kW

1.6 kW

2.6 kW

4.0 kW

Input Power

(P1)

1.3 kW

2.6 kW

3.7kW

H [m]

15

10

5

H [m]

25

20

15

10

5

GTF 4000

GTF 2600

GTF 1600

10

20

30

GTK 2600

GTK 1300

Voltage

230 V

400 V

400 V

400 V

Amperage

6.5 A

2.9 A

4.5 A

6.6A

Amperage

2.5 A

4.9 A

6.5 A

Power (P2)

1.1 kW

1.2 kW

2.1 kW

3.4 kW

Power (P2)

1.0 kW

2.1 kW

3.1 kW

GTF 1400

*Definition of S1-pumps see page 97

20

40

60

40

GTK 3700

Q [m

3

/h]

80 Q[m

3

/h]

*Definition of S1-pumps see page 97

Pump type

GTK 1300-S1*

GTK 2600-S1*

GTK 3700-S1*

Voltage

400 V

400 V

400 V

Duo version with two pumps

Ø

9

0

/

6

3

1

2

4

0

1

1

3

4

1

4

1

6

Ø

1

6

0

1

1

3

4

1

0

5

4

3

3

0

** Version with float switch
