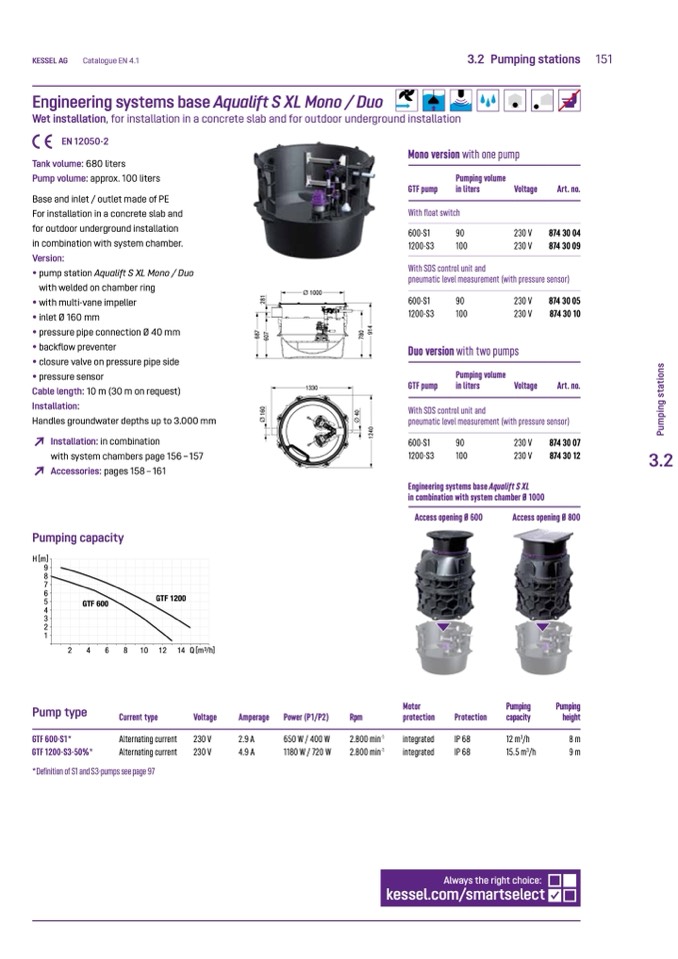

Engineering systems base Aqualift S XL Mono / Duo
Wet installation, for installation in a concrete slab and for outdoor underground installation
EN 12050-2
Tank volume: 680 liters
Pump volume: approx. 100 liters
Base and inlet / outlet made of PE
For installation in a concrete slab and
for outdoor underground installation
in combination with system chamber.
Version:
• pump station Aqualift S XL Mono / Duo
with welded on chamber ring
• with multi-vane impeller
• inlet Ø 160 mm
• pressure pipe connection Ø 40 mm
• backflow preventer
• closure valve on pressure pipe side
• pressure sensor
Cable length: 10 m (30 m on request)
Installation:
Handles groundwater depths up to 3.000 mm
↗
Installation: in combination
with system chambers page 156 – 157
↗
Accessories: pages 158 – 161
Pumping capacity
Mono version with one pump
H [m]
9
8
7
6
5
4
3
2
1
GTF 1200-S3-50%*
Alternating current
*Definition of S1 and S3-pumps see page 97
Pump type
Power (P1/P2)
650 W / 400 W
1180 W / 720 W
GTF 600
GTF 1200
2
4
6
8
10 12 14Q[m
3
/h]
Voltage
230 V
230 V
Motor
protection
integrated
integrated
Pumping
capacity
12 m
3
/h
15.5 m
3
/h
Pumping
height
8 m
9 m
Current type
GTF 600-S1*
Alternating current
Amperage
2.9 A
4.9 A
Rpm
2.800 min
-1
2.800 min
-1
Protection
IP 68
IP 68
Ø 1000
1330
600-S1
90
1200-S3
100
230 V
230 V
874 30 05
874 30 10
Art. no.
Pumping volume
GTF pump
in liters
With float switch
600-S1
90
1200-S3
100
Voltage
230 V
230 V
Art. no.
874 30 04
874 30 09
With SDS control unit and
pneumatic level measurement (with pressure sensor)
Ø
1
6
0
6
8
7
6
0
7
2
8
1
Ø
4
0
1
2
4
0
9
1
4
P
u
m
p
i
n
g
s
t
a
t
i
o
n
s
7
8
0
Duo version with two pumps
GTF pump
Pumping volume
in liters
Voltage
With SDS control unit and
pneumatic level measurement (with pressure sensor)
600-S1
90
230 V
1200-S3
100
230 V
Engineering systems base Aqualift S XL
in combination with system chamber Ø 1000
874 30 07
874 30 12
3.2
Access opening Ø 600
Access opening Ø 800
