Kessel - 4.1

Catalogue EN 4.1

KESSEL AG

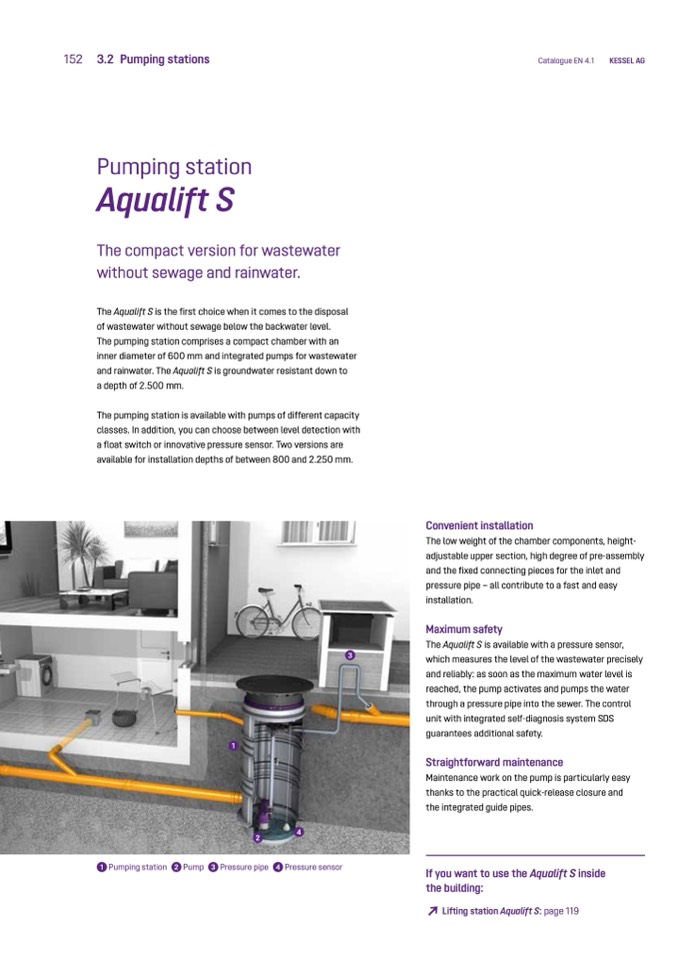

Aqualift S

The Aqualift S is the first choice when it comes to the disposal

of wastewater without sewage below the backwater level.

The pumping station comprises a compact chamber with an

inner diameter of 600 mm and integrated pumps for wastewater

and rainwater. The Aqualift S is groundwater resistant down to

a depth of 2.500 mm.

The pumping station is available with pumps of different capacity

classes. In addition, you can choose between level detection with

a float switch or innovative pressure sensor. Two versions are

available for installation depths of between 800 and 2.250 mm.

Convenient installation

The low weight of the chamber components, height-

adjustable upper section, high degree of pre-assembly

and the fixed connecting pieces for the inlet and

pressure pipe – all contribute to a fast and easy

installation.

Maximum safety

The Aqualift S is available with a pressure sensor,

which measures the level of the wastewater precisely

and reliably: as soon as the maximum water level is

reached, the pump activates and pumps the water

through a pressure pipe into the sewer. The control

unit with integrated self-diagnosis system SDS

guarantees additional safety.

Straightforward maintenance

Maintenance work on the pump is particularly easy

thanks to the practical quick-release closure and

the integrated guide pipes.

If you want to use the Aqualift S inside

the building:

Lifting station Aqualift S: page 119

4 Pressure sensor

1 Pumping station

2 Pump 3

Pressure pipe
