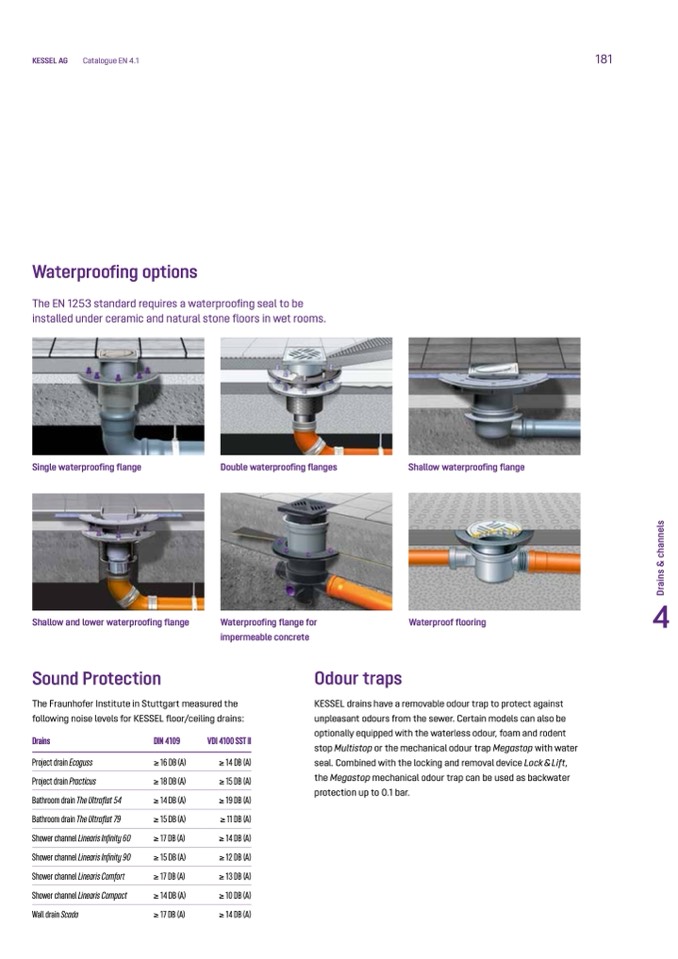

KESSEL AG

Catalogue EN 4.1

181

Waterproofing options

The EN 1253 standard requires a waterproofing seal to be

installed under ceramic and natural stone floors in wet rooms.

Single waterproofing

flange

Shallow and lower waterproofing flange

Sound Protection

The Fraunhofer Institute in Stuttgart measured the

following noise levels for KESSEL floor/ceiling drains:

Drains

Project drain Ecoguss

Project drain Practicus

Bathroom drain The Ultraflat 54

Bathroom drain The Ultraflat 79

Shower channel Linearis Infinity 60

Shower channel Linearis Infinity 90

Shower channel Linearis Comfort

Shower channel Linearis Compact

Wall drain Scada

DIN 4109

≥ 16 DB (A)

≥ 18 DB (A)

≥ 14 DB (A)

≥ 15 DB (A)

≥ 17 DB (A)

≥ 15 DB (A)

≥ 17 DB (A)

≥ 14 DB (A)

≥ 17 DB (A)

VDI 4100 SST II

≥ 14 DB (A)

≥ 15 DB (A)

≥ 19 DB (A)

≥ 11 DB (A)

≥ 14 DB (A)

≥ 12 DB (A)

≥ 13 DB (A)

≥ 10 DB (A)

≥ 14 DB (A)

KESSEL drains have a removable odour trap to protect against

unpleasant odours from the sewer. Certain models can also be

optionally equipped with the waterless odour, foam and rodent

stop Multistop or the mechanical odour trap Megastop with water

seal. Combined with the locking and removal device Lock & Lift,

the Megastop mechanical odour trap can be used as backwater

protection up to 0.1 bar.

Double waterproofing flanges

Shallow waterproofing flange

Waterproofing flange for

impermeable concrete

Waterproof flooring

Odour traps
