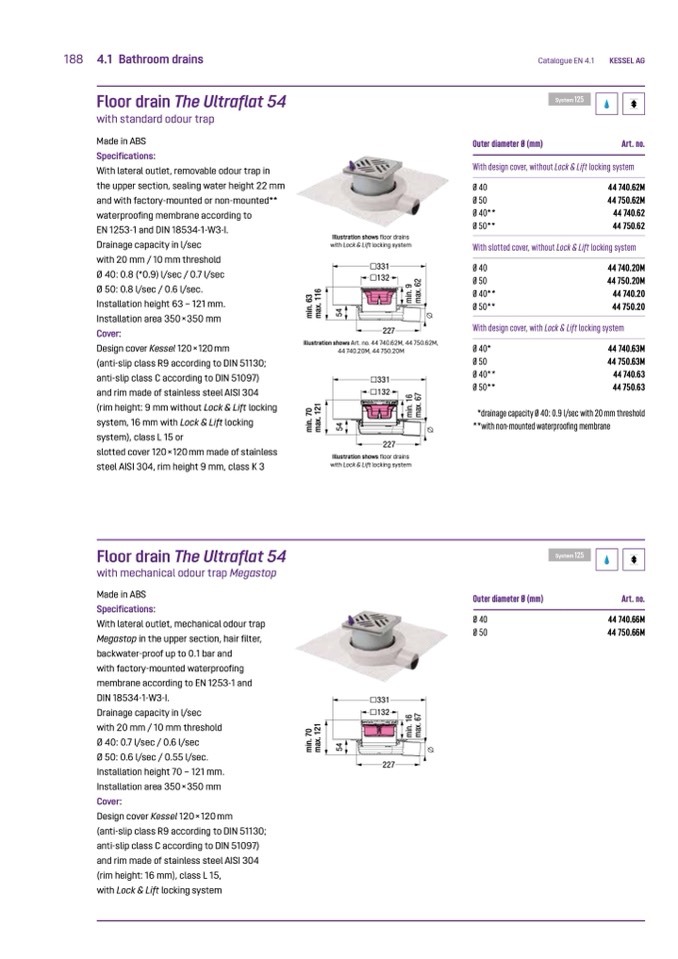

188 4.1 Bathroom drains
Floor drain The Ultraflat 54
with standard odour trap
Made in ABS
Specifications:
With lateral outlet, removable odour trap in
the upper section, sealing water height 22 mm
and with factory-mounted or non-mounted**
waterproofing membrane according to
EN 1253-1 and DIN 18534-1-W3-I.
Drainage capacity in l/sec
with 20 mm / 10 mm threshold
Ø 40: 0.8 (*0.9) l/sec / 0.7 l/sec
Ø 50: 0.8 l/sec / 0.6 l/sec.
Installation height 63 – 121 mm.
Installation area 350×350 mm
Cover:
Design cover Kessel 120×120 mm
(anti-slip class R9 according to DIN 51130;
anti-slip class C according to DIN 51097)
and rim made of stainless steel AISI 304
(rim height: 9 mm without Lock & Lift locking
system, 16 mm with Lock & Lift locking
system), class L 15 or
slotted cover 120×120 mm made of stainless
steel AISI 304, rim height 9 mm, class K 3
Floor drain The Ultraflat 54
with mechanical odour trap Megastop
Made in ABS
Specifications:
With lateral outlet, mechanical odour trap
Megastop in the upper section, hair filter,
backwater-proof up to 0.1 bar and
with factory-mounted waterproofing
membrane according to EN 1253-1 and
DIN 18534-1-W3-I.
Drainage capacity in l/sec
with 20 mm / 10 mm threshold
Ø 40: 0.7 l/sec / 0.6 l/sec
Ø 50: 0.6 l/sec / 0.55 l/sec.
Installation height 70 – 121 mm.
Installation area 350×350 mm
Cover:
Design cover Kessel 120×120 mm
(anti-slip class R9 according to DIN 51130;
anti-slip class C according to DIN 51097)
and rim made of stainless steel AISI 304
(rim height: 16 mm), class L 15,
with Lock & Lift locking system
Catalogue EN 4.1
Outer diameter Ø (mm)
KESSEL AG
Art. no.
Illustration shows floor drains
with Lock & Lift locking system
331
132
227
Illustration shows Art. no. 44 740.62M, 44 750.62M,
44 740.20M, 44 750.20M
331
132
227
Illustration shows floor drains
with Lock & Lift locking system
With slotted cover, without Lock & Lift locking system
331
132
227
With design cover, without Lock & Lift locking system
Ø 40
Ø 50
Ø 40**
Ø 50**
44 740.62M
44 750.62M
44 740.62
44 750.62
Ø 40
Ø 50
Ø 40**
Ø 50**
44 740.20M
44 750.20M
44 740.20
44 750.20
With design cover, with Lock & Lift locking system
Ø 40*
Ø 50
Ø 40**
Ø 50**
44 740.63M
44 750.63M
44 740.63
44 750.63
*drainage capacity Ø 40: 0.9 l/sec with 20 mm threshold
**with non-mounted waterproofing membrane
Outer diameter Ø (mm)
Ø 40
Ø 50
Art. no.
44 740.66M
44 750.66M
m
i
n
.
7
0
m
i
n
.
7
0
m
i
n
.
6
3
m
a
x
.
1
2
1
m
a
x
.
1
2
1
m
a
x
.
1
1
6
5
4
5
4
5
4
m
i
n
.
1
6
m
i
n
.
1
6
m
i
n
.
9
m
a
x
.
6
7
m
a
x
.
6
7
m
a
x
.
6
2
