KESSEL AG

Catalogue EN 4.1

4.1 Bathroom drains

189

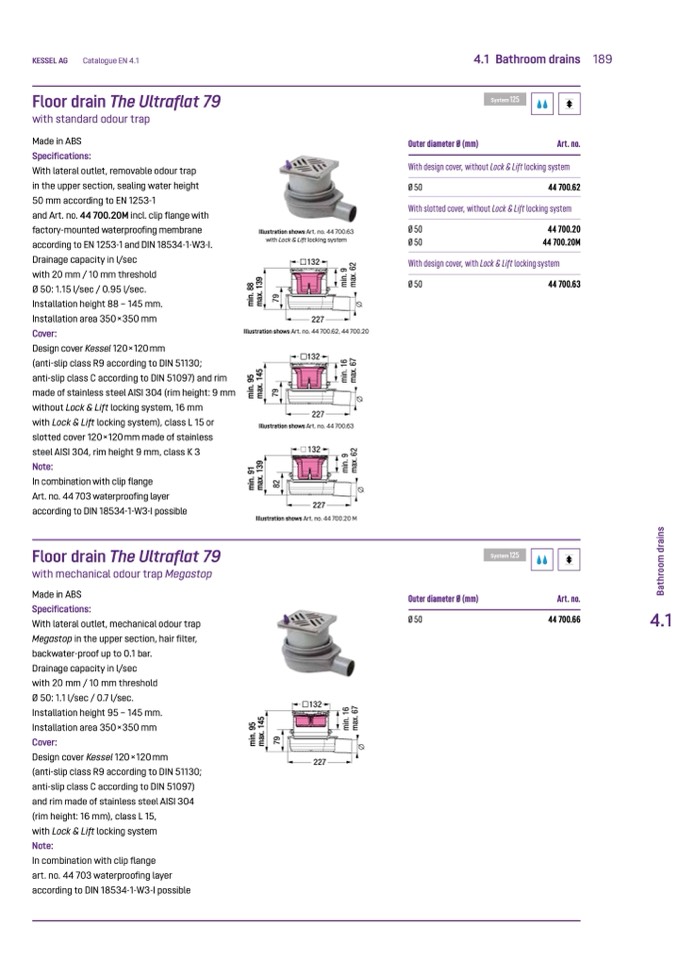

Floor drain The Ultraflat 79

with standard odour trap

Made in ABS

Specifications:

With lateral outlet, removable odour trap

in the upper section, sealing water height

50 mm according to EN 1253-1

and Art. no. 44 700.20M incl. clip flange with

factory-mounted waterproofing membrane

according to EN 1253-1 and DIN 18534-1-W3-I.

Drainage capacity in l/sec

with 20 mm / 10 mm threshold

Ø 50: 1.15 l/sec / 0.95 l/sec.

Installation height 88 – 145 mm.

Installation area 350×350 mm

Cover:

Design cover Kessel 120×120 mm

(anti-slip class R9 according to DIN 51130;

anti-slip class C according to DIN 51097) and rim

made of stainless steel AISI 304 (rim height: 9 mm

without Lock & Lift locking system, 16 mm

with Lock & Lift locking system), class L 15 or

slotted cover 120×120 mm made of stainless

steel AISI 304, rim height 9 mm, class K 3

Note:

In combination with clip flange

Art. no. 44 703 waterproofing layer

according to DIN 18534-1-W3-I possible

Floor drain The Ultraflat 79

with mechanical odour trap Megastop

Made in ABS

Specifications:

With lateral outlet, mechanical odour trap

Megastop in the upper section, hair filter,

backwater-proof up to 0.1 bar.

Drainage capacity in l/sec

with 20 mm / 10 mm threshold

Ø 50: 1.1 l/sec / 0.7 l/sec.

Installation height 95 – 145 mm.

Installation area 350×350 mm

Cover:

Design cover Kessel 120×120 mm

(anti-slip class R9 according to DIN 51130;

anti-slip class C according to DIN 51097)

and rim made of stainless steel AISI 304

(rim height: 16 mm), class L 15,

with Lock & Lift locking system

Note:

In combination with clip flange

art. no. 44 703 waterproofing layer

according to DIN 18534-1-W3-I possible

Outer diameter Ø (mm)

Art. no.

With design cover, without Lock & Lift locking system

Ø 50

44 700.62

With slotted cover, without Lock & Lift locking system

Illustration shows Art. no. 44 700.63

with Lock & Lift locking system

132

227

Illustration shows Art. no. 44 700.62, 44 700.20

132

227

Illustration shows Art. no. 44 700.63

132

227

Illustration shows Art. no. 44 700.20 M

132

227

Ø 50

Ø 50

44 700.20

44 700.20M

With design cover, with Lock & Lift locking system

Ø 50

44 700.63

Outer diameter Ø (mm)

Ø 50

Art. no.

44 700.66
