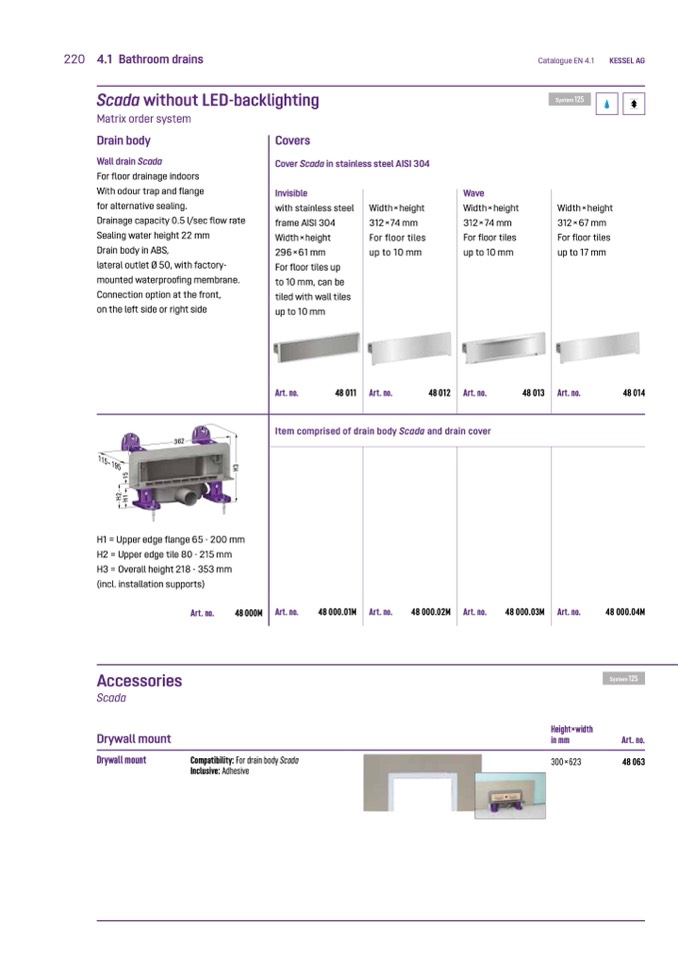

220 4.1 Bathroom drains

Scada without LED-backlighting

Catalogue EN 4.1

KESSEL AG

Matrix order system

Drain body

Wall drain Scada

For floor drainage indoors

With odour trap and flange

for alternative sealing.

Drainage capacity 0.5 l/sec flow rate

Sealing water height 22 mm

Drain body in ABS,

lateral outlet Ø 50, with factory-

mounted waterproofing membrane.

Connection option at the front,

on the left side or right side

H1 = Upper edge flange 65 - 200 mm

H2 = Upper edge tile 80 - 215 mm

H3 = Overall height 218 - 353 mm

(incl. installation supports)

Covers

Cover Scada in stainless steel AISI 304

Invisible

with stainless steel

frame AISI 304

Width×height

296×61 mm

For floor tiles up

to 10 mm, can be

tiled with wall tiles

up to 10 mm

Art. no.

48 011

Width×height

312×74 mm

For floor tiles

up to 10 mm

Art. no.

Wave

Width×height

312×74 mm

For floor tiles

up to 10 mm

Width×height

312×67 mm

For floor tiles

up to 17 mm

48 012

Art. no.

48 013

Art. no.

48 014

Item comprised of drain body Scada and drain cover

Accessories

Scada

Drywall mount

Drywall mount

Compatibility: For drain body Scada

Inclusive: Adhesive

Art. no.

48 000M

Art. no.

48 000.01M

Art. no.

48 000.02M

Art. no.

48 000.03M

Art. no.

Height×width

in mm

300×623

48 000.04M

Art. no.

48 063

362

1

1

5

-

1

9

5

H

2

H

1

1

5

H

3
