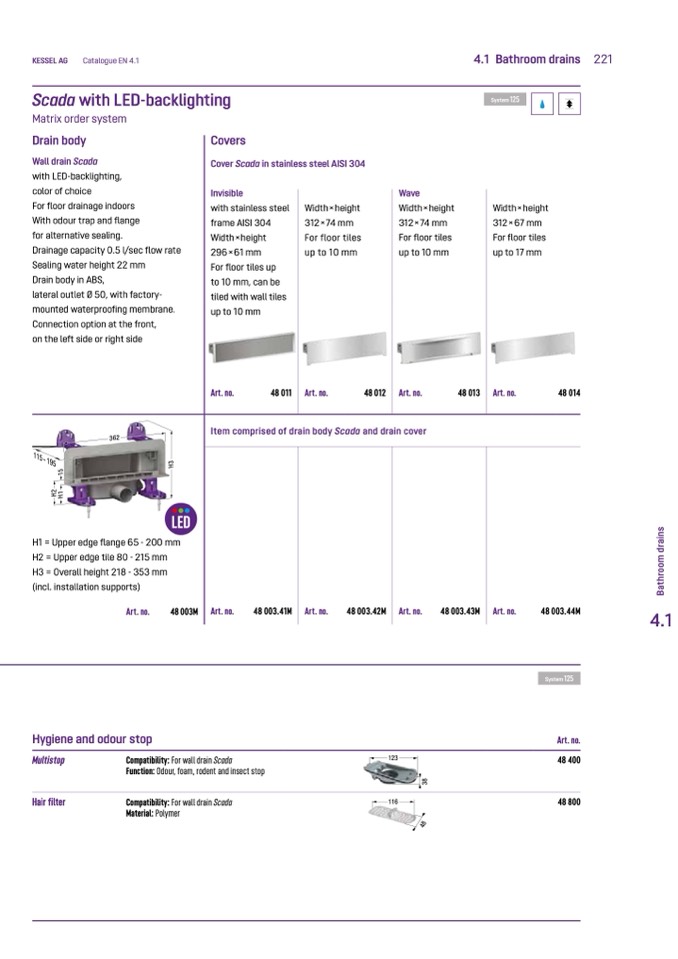

Bathroom drains 221

Scada with LED-backlighting

Matrix order system

Drain body

Wall drain Scada

with LED-backlighting,

color of choice

For floor drainage indoors

With odour trap and flange

for alternative sealing.

Drainage capacity 0.5 l/sec flow rate

Sealing water height 22 mm

Drain body in ABS,

lateral outlet Ø 50, with factory-

mounted waterproofing membrane.

Connection option at the front,

on the left side or right side

H1 = Upper edge flange 65 - 200 mm

H2 = Upper edge tile 80 - 215 mm

H3 = Overall height 218 - 353 mm

(incl. installation supports)

Art. no.

48 003M

Hygiene and odour stop

Covers

Cover Scada in stainless steel AISI 304

Invisible

with stainless steel

frame AISI 304

Width×height

296×61 mm

For floor tiles up

to 10 mm, can be

tiled with wall tiles

up to 10 mm

Art. no.

48 011

Width×height

312×74 mm

For floor tiles

up to 10 mm

Art. no.

Wave

Width×height

312×74 mm

For floor tiles

up to 10 mm

Width×height

312×67 mm

For floor tiles

up to 17 mm

48 012

Art. no.

48 013

Art. no.

48 014

Item comprised of drain body Scada and drain cover

Multistop

Compatibility: For wall drain Scada

Function: Odour, foam, rodent and insect stop

Hair filter

Compatibility: For wall drain Scada

Material: Polymer

123

116

Art. no.

48 003.41M

Art. no.

48 003.42M

Art. no.

48 003.43M

Art. no.

48 003.44M

Art. no.

48 400

48 800
