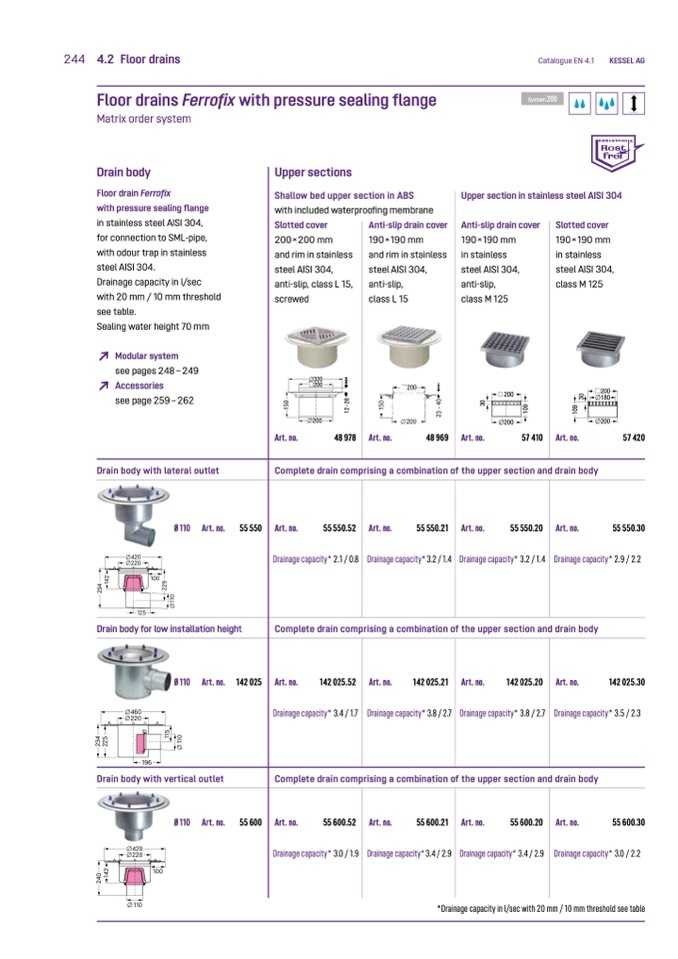

Floor drains Ferrofix with pressure sealing flange

Catalogue EN 4.1

KESSEL AG

Matrix order system

Drain body

Floor drain Ferrofix

with pressure sealing flange

in stainless steel AISI 304,

for connection to SML-pipe,

with odour trap in stainless

steel AISI 304.

Drainage capacity in l/sec

with 20 mm / 10 mm threshold

see table.

Sealing water height 70 mm

↗

Modular system

see pages 248 – 249

↗

Accessories

see page 259 – 262

Drain body with lateral outlet

Upper sections

Shallow bed upper section in ABS

with included waterproofing membrane

Upper section in stainless steel AISI 304

Ø420

Ø220

100

125

Drainage capacity* 2.9 / 2.2

Drain body for low installation height

Complete drain comprising a combination of the upper section and drain body

Art. no.

142 025.52 Art. no.

142 025.21 Art. no.

142 025.20 Art. no.

Drainage capacity* 3.4 / 1.7 Drainage capacity* 3.8 / 2.7 Drainage capacity* 3.8 / 2.7 Drainage capacity* 3.5 / 2.3

Complete drain comprising a combination of the upper section and drain body

Ø460

Ø220

196

Drain body with vertical outlet

Ø420

Ø220

Ø 110

*Drainage capacity in l/sec with 20 mm / 10 mm threshold see table

100

Ø 110

Art. no.

55 550

Art. no.

55 550.52

Drainage capacity* 2.1 / 0.8

Art. no.

55 550.21

Drainage capacity* 3.2 / 1.4

Art. no.

55 550.20

Drainage capacity* 3.2 / 1.4

Art. no.

Ø 110 Art. no.

142 025

55 600

142 025.30

Ø 110

Art. no.

55 600.52

Drainage capacity* 3.0 / 1.9

Art. no.

55 600.21 Art. no.

55 600.20 Art. no.

55 600.30

Drainage capacity*3.4 / 2.9 Drainage capacity* 3.4 / 2.9 Drainage capacity* 3.0 / 2.2

Slotted cover

200×200 mm

and rim in stainless

steel AISI 304,

anti-slip, class L 15,

screwed

320

200

Anti-slip drain cover

190×190 mm

and rim in stainless

steel AISI 304,

anti-slip,

class L 15

Anti-slip drain cover

Slotted cover

190×190 mm

in stainless

steel AISI 304,

class M 125

200

180

200

Art. no.

48 978

Art. no.

48 969

Art. no.

57 410

Art. no.

57 420

55 550.30

Complete drain comprising a combination of the upper section and drain body

190×190 mm

in stainless

steel AISI 304,

anti-slip,

class M 125

200
