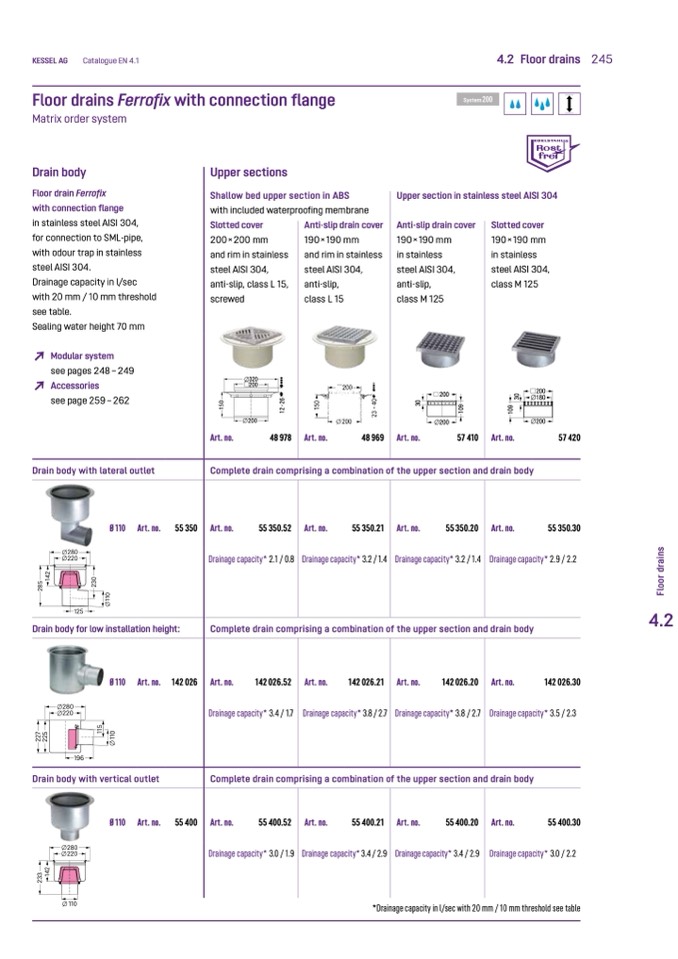

4.2 Floor drains 245

Floor drains Ferrofix with connection flange

Matrix order system

Drain body

Floor drain Ferrofix

with connection flange

in stainless steel AISI 304,

for connection to SML-pipe,

with odour trap in stainless

steel AISI 304.

Drainage capacity in l/sec

with 20 mm / 10 mm threshold

see table.

Sealing water height 70 mm

↗

Modular system

see pages 248 – 249

↗

Accessories

see page 259 – 262

Drain body with lateral outlet

Upper sections

Shallow bed upper section in ABS

with included waterproofing membrane

Upper section in stainless steel AISI 304

Ø280

Ø220

125

Drainage capacity* 2.9 / 2.2

Drain body for low installation height:

Complete drain comprising a combination of the upper section and drain body

Art. no.

142 026.52 Art. no.

142 026.21 Art. no.

142 026.20 Art. no.

142 026.30

Drainage capacity* 3.4 / 1.7 Drainage capacity* 3.8 / 2.7 Drainage capacity* 3.8 / 2.7 Drainage capacity* 3.5 / 2.3

Complete drain comprising a combination of the upper section and drain body

Art. no.

55 400.52 Art. no.

55 400.21 Art. no.

55 400.20 Art. no.

55 400.30

Drainage capacity* 3.0 / 1.9 Drainage capacity*3.4 / 2.9 Drainage capacity* 3.4 / 2.9 Drainage capacity* 3.0 / 2.2

4.2

Ø280

Ø220

Ø280

Ø220

Ø 110

*Drainage capacity in l/sec with 20 mm / 10 mm threshold see table

196

Drain body with vertical outlet

Ø 110

Art. no.

55 350

Art. no.

55 350.52

Drainage capacity* 2.1 / 0.8

Art. no.

55 350.21

Drainage capacity* 3.2 / 1.4

Art. no.

55 350.20

Drainage capacity* 3.2 / 1.4

Art. no.

Ø 110 Art. no.

142 026

55 400

Ø 110

Art. no.

Slotted cover

200×200 mm

and rim in stainless

steel AISI 304,

anti-slip, class L 15,

screwed

320

200

Anti-slip drain cover

190×190 mm

and rim in stainless

steel AISI 304,

anti-slip,

class L 15

Anti-slip drain cover

Slotted cover

190×190 mm

in stainless

steel AISI 304,

class M 125

200

180

200

Art. no.

48 978

Art. no.

48 969

Art. no.

57 410

Art. no.

57 420

55 350.30

Complete drain comprising a combination of the upper section and drain body

190×190 mm

in stainless

steel AISI 304,

anti-slip,

class M 125

200
