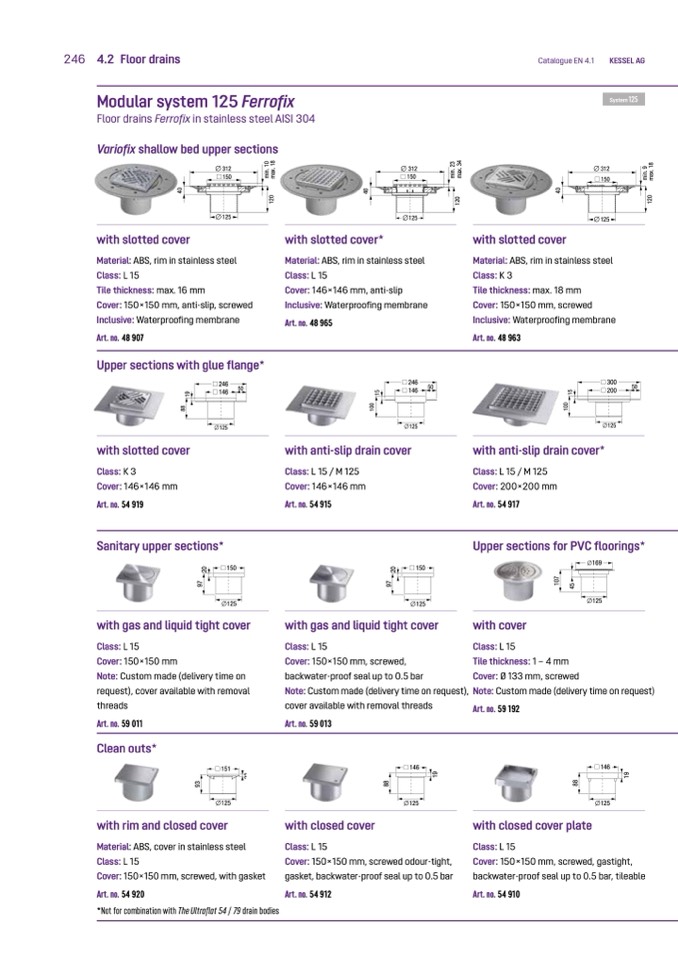

246 4.2 Floor drains
Modular system 125 Ferrofix
Floor drains Ferrofix in stainless steel AISI 304
Variofix shallow bed upper sections
312
150
125
with slotted cover
Material: ABS, rim in stainless steel
Class: L 15
Tile thickness: max. 16 mm
Cover: 150×150 mm, anti-slip, screwed
Inclusive: Waterproofing membrane
Art. no. 48 907
Upper sections with glue flange*
Catalogue EN 4.1
KESSEL AG
312
150
125
with slotted cover
Class: K 3
Cover: 146×146 mm
Art. no. 54 919
Class: L 15 / M 125
Cover: 146×146 mm
Art. no. 54 915
Sanitary upper sections*
150
150
FOTO. 48905
169
125
125
with gas and liquid tight cover
Class: L 15
Cover: 150×150 mm
Note: Custom made (delivery time on
request), cover available with removal
threads
Art. no. 59 011
Clean outs*
151
125
with rim and closed cover
Material: ABS, cover in stainless steel
Class: L 15
Cover: 150×150 mm, screwed, with gasket
Art. no. 54 920
*Not for combination with The Ultraflat 54 / 79 drain bodies
125
with gas and liquid tight cover
Class: L 15
Cover: 150×150 mm, screwed,
backwater-proof seal up to 0.5 bar
Note: Custom made (delivery time on request),
cover available with removal threads
with cover
Class: L 15
246
146
125
50
312
150
125
with slotted cover*
Material: ABS, rim in stainless steel
Class: L 15
Cover: 146×146 mm, anti-slip
Inclusive: Waterproofing membrane
Art. no. 48 965
246
146
125
with anti-slip drain cover
with slotted cover
Material: ABS, rim in stainless steel
Class: K 3
Tile thickness: max. 18 mm
Cover: 150×150 mm, screwed
Inclusive: Waterproofing membrane
Art. no. 48 963
50
300
50
200
125
with anti-slip drain cover*
Class: L 15 / M 125
Cover: 200×200 mm
Art. no. 54 917
Upper sections for PVC floorings*
Art. no. 59 013
with closed cover
Class: L 15
146
125
Tile thickness: 1 – 4 mm
Cover: Ø 133 mm, screwed
Note: Custom made (delivery time on request)
Art. no. 59 192
146
125
with closed cover plate
Class: L 15
Cover: 150×150 mm, screwed, gastight,
backwater-proof seal up to 0.5 bar, tileable
Art. no. 54 910
9
3
9
7
2
0
8
8
9
7
2
0
8
8
1
0
0
1
5
2
3
1
9
1
9
1
0
7
4
5
4
0
8
8
1
9
4
0
1
0
0
4
0
1
5
1
2
0
m
i
n
.
1
0
1
2
0
m
i
n
.
2
3
m
a
x
.
3
4
1
2
0
m
i
n
.
9
m
a
x
.
1
8
m
a
x
.
1
8
Cover: 150×150 mm, screwed odour-tight,
gasket, backwater-proof seal up to 0.5 bar
Art. no. 54 912
