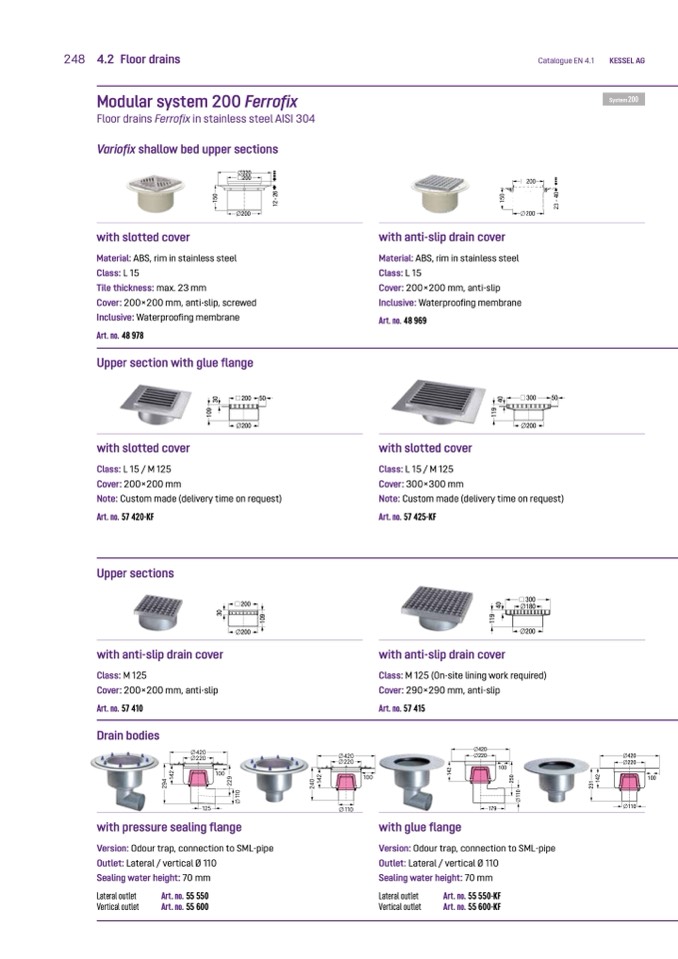

248 4.2 Floor drains

Modular system 200 Ferrofix

Floor drains Ferrofix in stainless steel AISI 304

Variofix shallow bed upper sections

Catalogue EN 4.1

KESSEL AG

with slotted cover

with anti-slip drain cover

Material: ABS, rim in stainless steel

Class: L 15

Cover: 200×200 mm, anti-slip

Inclusive: Waterproofing membrane

Art. no. 48 969

with slotted cover

Material: ABS, rim in stainless steel

Class: L 15

Tile thickness: max. 23 mm

Cover: 200×200 mm, anti-slip, screwed

Inclusive: Waterproofing membrane

Art. no. 48 978

Upper section with glue flange

200 50

200

with slotted cover

Class: L 15 / M 125

Cover: 200×200 mm

Note: Custom made (delivery time on request)

300

50

200

Art. no. 57 420-KF

Upper sections

with anti-slip drain cover

Class: M 125

Cover: 200×200 mm, anti-slip

Art. no. 57 410

200

200

Class: L 15 / M 125

Cover: 300×300 mm

Note: Custom made (delivery time on request)

Art. no. 57 425-KF

300

180

200

with anti-slip drain cover

Class: M 125 (On-site lining work required)

Cover: 290×290 mm, anti-slip

Drain bodies

with pressure sealing flange

Version: Odour trap, connection to SML-pipe

Outlet: Lateral / vertical Ø 110

Sealing water height: 70 mm

Lateral outlet

Art. no. 55 550

Vertical outlet

Art. no. 55 600

with glue flange

Ø420

Ø220

100

Ø420

Ø220

420

220 420

220

110

320

200

200

1

1

0

Ø

1

1

0

2

9

4

2

2

9

2

4

0

1

4

2

1

4

2

2

5

0

2

3

1

1

4

2

1

4

2

1

0

9

3

0

1

0

9

3

0

1

5

0

1

1

9

4

0

1

1

9

4

0

1

2

-

2

6

125

Ø110

179

100

100

Art. no. 57 415

Version: Odour trap, connection to SML-pipe

Outlet: Lateral / vertical Ø 110

Sealing water height: 70 mm

Lateral outlet

Art. no. 55 550-KF

Vertical outlet

Art. no. 55 600-KF

100
