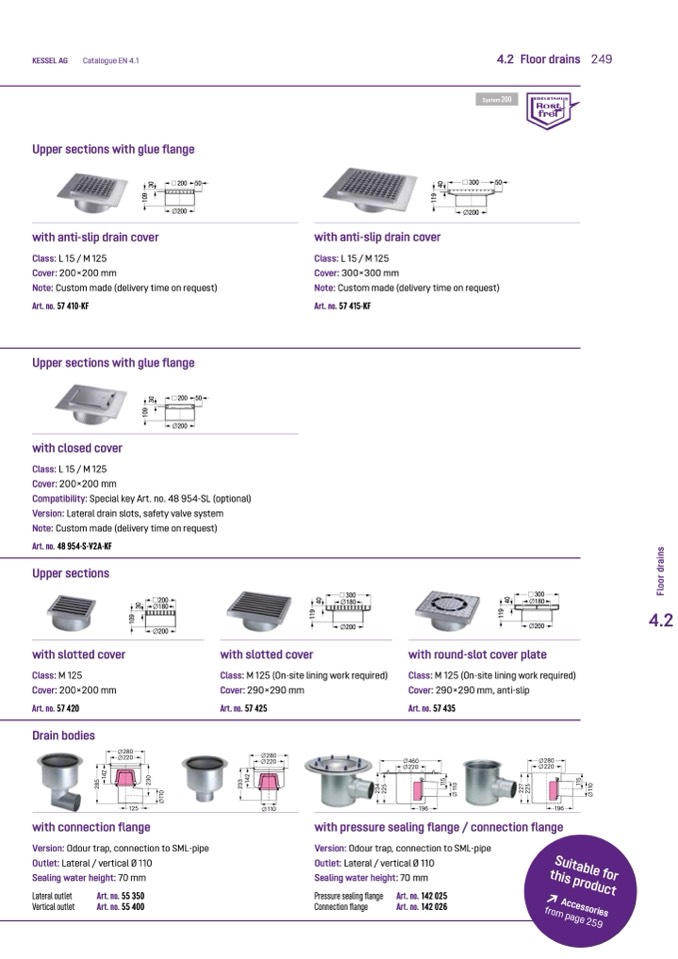

Floor drains 249

Upper sections with glue flange

200 50

200

with anti-slip drain cover

Class: L 15 / M 125

Cover: 200×200 mm

Note: Custom made (delivery time on request)

Art. no. 57 410-KF

Upper sections with glue flange

200 50

200

with closed cover

Class: L 15 / M 125

Cover: 200×200 mm

Compatibility: Special key Art. no. 48 954-SL (optional)

Version: Lateral drain slots, safety valve system

Note: Custom made (delivery time on request)

Art. no. 48 954-S-V2A-KF

Upper sections

with slotted cover

Class: M 125

300

50

200

Cover: 200×200 mm

Art. no. 57 420

Drain bodies

Ø280

Ø220

with connection flange

Version: Odour trap, connection to SML-pipe

Outlet: Lateral / vertical Ø 110

Sealing water height: 70 mm

Lateral outlet

Art. no. 55 350

Vertical outlet

Art. no. 55 400

with pressure sealing flange / connection flange

Version: Odour trap, connection to SML-pipe

Outlet: Lateral / vertical Ø 110

Sealing water height: 70 mm

Pressure sealing flange Art. no. 142 025

Connection flange

Art. no. 142 026

200

180

200

300

180

200

with slotted cover

Class: M 125 (On-site lining work required)

Cover: 290×290 mm

Art. no. 57 425

Ø280

Ø220

300

180

200

with round-slot cover plate

Class: M 125 (On-site lining work required)

Cover: 290×290 mm, anti-slip

Art. no. 57 435

Ø460

Ø280

Ø220

Ø220

4.2

with anti-slip drain cover

Class: L 15 / M 125

Cover: 300×300 mm

Note: Custom made (delivery time on request)

Art. no. 57 415-KF

1

1

0

1

1

0

1

1

0

Ø

Ø

Ø

2

8

5

2

2

5

2

2

7

2

2

5

2

3

0

2

3

3

2

3

4

1

1

5

1

1

9

4

0

1

1

5

1

4

2

1

4

2

1

0

9

3

0

1

0

9

3

0

1

0

9

3

0

1

1

9

4

0

1

1

9

4

0

F

l

o

o

r

d

r

a

i

n

s

125

Ø110

196

196
