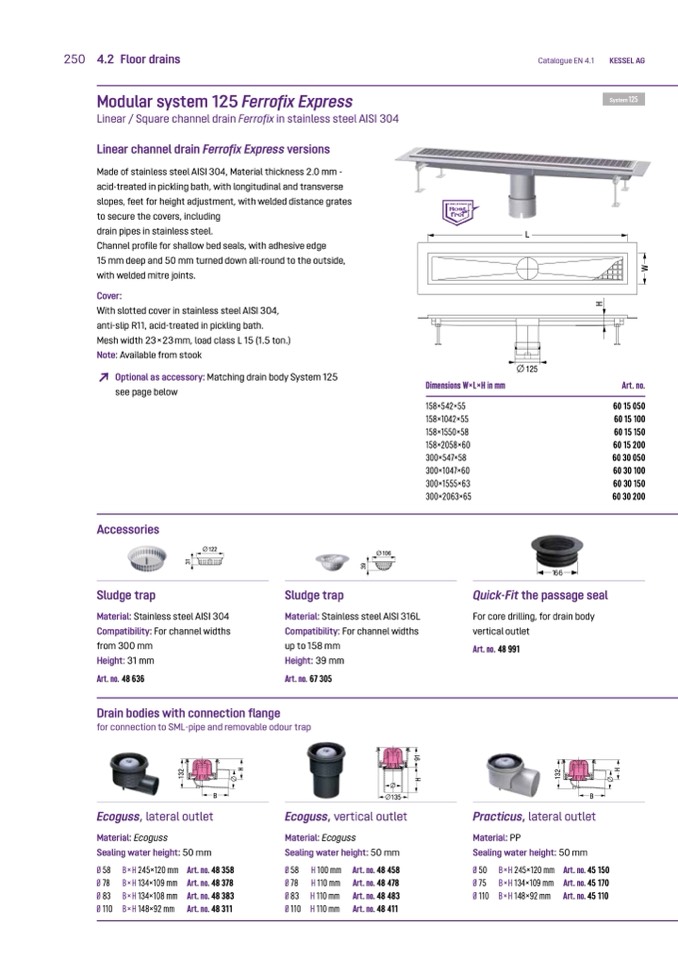

250 4.2 Floor drains
Modular system 125 Ferrofix Express
Linear / Square channel drain Ferrofix in stainless steel AISI 304
Linear channel drain Ferrofix Express versions
Catalogue EN 4.1
KESSEL AG
Made of stainless steel AISI 304, Material thickness 2.0 mm -
acid-treated in pickling bath, with longitudinal and transverse
slopes, feet for height adjustment, with welded distance grates
to secure the covers, including
drain pipes in stainless steel.
Channel profile for shallow bed seals, with adhesive edge
15 mm deep and 50 mm turned down all-round to the outside,
with welded mitre joints.
Cover:
With slotted cover in stainless steel AISI 304,
anti-slip R11, acid-treated in pickling bath.
Mesh width 23×23 mm, load class L 15 (1.5 ton.)
Note: Available from stook
↗
Optional as accessory: Matching drain body System 125
see page below
Accessories
L
Sludge trap
Material: Stainless steel AISI 304
Compatibility: For channel widths
from 300 mm
Height: 31 mm
Art. no. 48 636
Drain bodies with connection flange
Quick-Fit the passage seal
For core drilling, for drain body
vertical outlet
Art. no. 48 991
Ø122
Ø106
Sludge trap
Material: Stainless steel AISI 316L
Compatibility: For channel widths
up to 158 mm
Height: 39 mm
Art. no. 67 305
for connection to SML-pipe and removable odour trap
Ecoguss, lateral outlet
Material: Ecoguss
151
Sealing water height: 50 mm
Ecoguss, vertical outlet
Material: Ecoguss
Sealing water height: 50 mm
Ø58 H100mm Art.no.48458
Ø78 H110mm Art.no.48478
Ø83 H110mm Art.no.48483
Ø110 H110mm Art.no.48411
Practicus, lateral outlet
Material: PP
151
Sealing water height: 50 mm
Ø 58
Ø 78
Ø 83
Ø 110
B×H 245×120 mm
B×H 134×109 mm
B×H 134×108 mm
B×H 148×92 mm
Art.
A
no. 48 358
A
Art. no. 48 378
Art. no. 48 383
Art. no. 48 311
Ø 50
Ø 75
Ø 110
B×H 245×120 mm
B×H 134×109 mm
B×H 148×92 mm
Art.
A
no. 45 150
Art. no. 45 170
Art. no. 45 110
A
B
135
B
Dimensions W×L×H in mm
Art. no.
60 15 050
60 15 100
60 15 150
60 15 200
60 30 050
60 30 100
60 30 150
60 30 200
158×542×55
158×1042×55
158×1550×58
158×2058×60
300×547×58
300×1047×60
300×1555×63
300×2063×65
L
125
125
166
1
3
2
9
2
1
3
2
9
2
H
H
1
3
2
3
1
H
9
1
1
3
2
3
9
H
H
W
W
