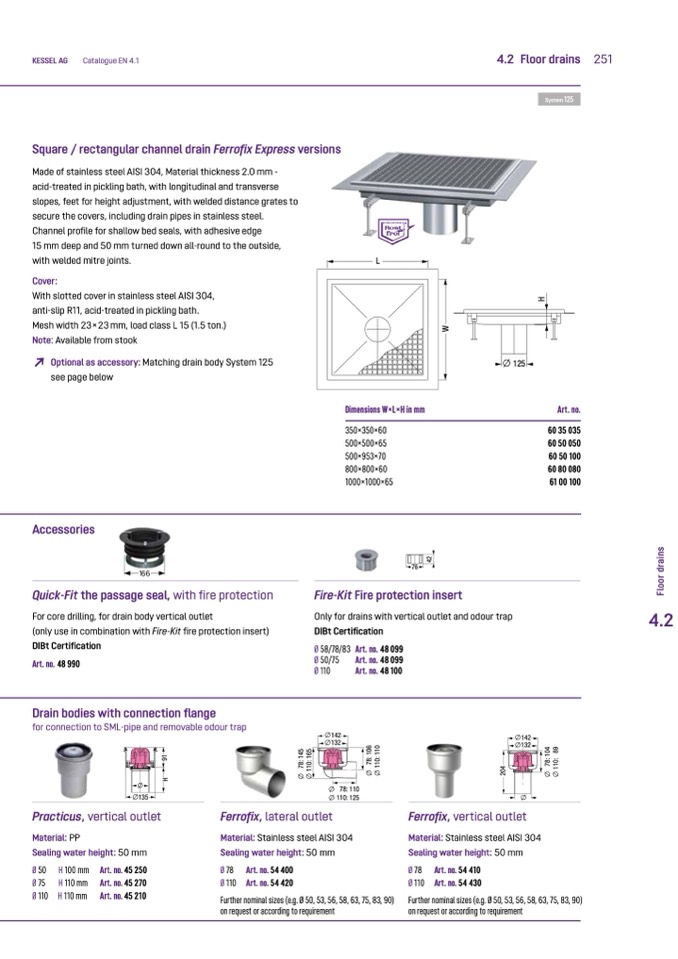

KESSEL AG
Catalogue EN 4.1
4.2 Floor drains 251
Square / rectangular channel drain Ferro
fix Express versions
Made of stainless steel AISI 304, Material thickness 2.0 mm -
acid-treated in pickling bath, with longitudinal and transverse
slopes, feet for height adjustment, with welded distance grates to
secure the covers, including drain pipes in stainless steel.
Channel profile for shallow bed seals, with adhesive edge
15 mm deep and 50 mm turned down all-round to the outside,
with welded mitre joints.
Cover:
With slotted cover in stainless steel AISI 304,
anti-slip R11, acid-treated in pickling bath.
Mesh width 23×23 mm, load class L 15 (1.5 ton.)
Note: Available from stook
↗
Optional as accessory: Matching drain body System 125
see page below
Accessories
166
Quick-Fit the passage seal, with fire protection
For core drilling, for drain body vertical outlet
(only use in combination with Fire-Kit fire protection insert)
DIBt Certi
fication
Art. no. 48 990
Drain bodies with connection
flange
for connection to SML-pipe and removable odour trap
135
Practicus, vertical outlet
Material: PP
Sealing water height: 50 mm
Ø50 H100mm Art.no.45250
Ø75 H110mm Art.no.45270
Ø110 H110mm Art.no.45210
DIBt Certification
Ø58/78/83 Art.no.48099
4.2
Art. no. 48 099
Art. no. 48 100
78: 110
110: 125
Ferrofix, lateral outlet
Material: Stainless steel AISI 304
Sealing water height: 50 mm
Ø 78 Art. no. 54 400
Ø 110 Art. no. 54 420
Further nominal sizes (e.g. Ø 50, 53, 56, 58, 63, 75, 83, 90)
on request or according to requirement
L
Dimensions W×L×H in mm
350×350×60
500×500×65
500×953×70
800×800×60
1000×1000×65
76
Fire-Kit Fire protection insert
Only for drains with vertical outlet and odour trap
Ø 50/75
Ø 110
142
132
142
132
Ferrofix, vertical outlet
Material: Stainless steel AISI 304
Sealing water height: 50 mm
Ø 78 Art. no. 54 410
Ø 110 Art. no. 54 430
H
9
1
7
8
:
1
4
5
1
1
0
:
1
6
5
7
8
:
1
0
6
1
1
0
:
1
1
0
2
0
4
7
8
:
1
0
4
1
1
0
:
8
9
H
F
l
o
o
r
d
r
a
i
n
s
4
2
W
Further nominal sizes (e.g. Ø 50, 53, 56, 58, 63, 75, 83, 90)
on request or according to requirement
125
Art. no.
60 35 035
60 50 050
60 50 100
60 80 080
61 00 100
