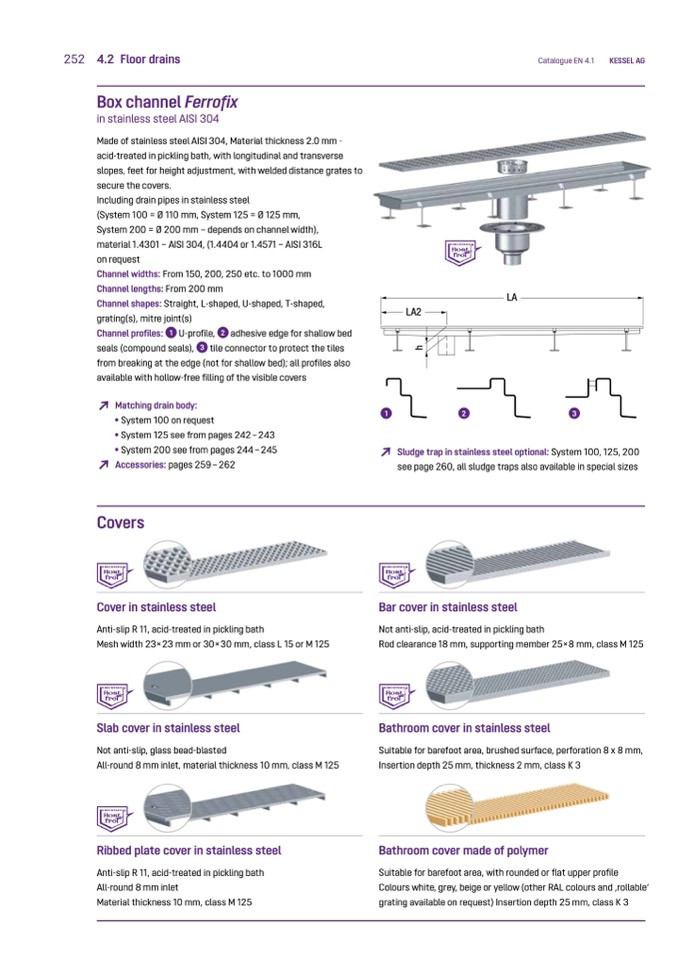

252 4.2 Floor drains
Box channel Ferrofix
in stainless steel AISI 304
Made of stainless steel AISI 304, Material thickness 2.0 mm -
acid-treated in pickling bath, with longitudinal and transverse
slopes, feet for height adjustment, with welded distance grates to
secure the covers.
Including drain pipes in stainless steel
(System 100 = Ø 110 mm, System 125 = Ø 125 mm,
System 200 = Ø 200 mm – depends on channel width),
material 1.4301 – AISI 304, (1.4404 or 1.4571 – AISI 316L
on request
Channel widths: From 150, 200, 250 etc. to 1000 mm
Channel lengths: From 200 mm
Channel shapes: Straight, L-shaped, U-shaped, T-shaped,
grating(s), mitre joint(s)
Channel profiles: 1 U-profile, 2 adhesive edge for shallow bed
seals (compound seals), 3 tile connector to protect the tiles
from breaking at the edge (not for shallow bed); all profiles also
available with hollow-free filling of the visible covers
↗
Matching drain body:
• System 100 on request
• System 125 see from pages 242 – 243
• System 200 see from pages 244 – 245
↗
Accessories: pages 259 – 262
Covers
Cover in stainless steel
Anti-slip R 11, acid-treated in pickling bath
Mesh width 23×23 mm or 30×30 mm, class L 15 or M 125
Slab cover in stainless steel
Not anti-slip, glass bead-blasted
All-round 8 mm inlet, material thickness 10 mm, class M 125
Ribbed plate cover in stainless steel
Anti-slip R 11, acid-treated in pickling bath
All-round 8 mm inlet
Material thickness 10 mm, class M 125
Catalogue EN 4.1
KESSEL AG
LA
LA2
1
2
3
↗
Sludge trap in stainless steel optional: System 100, 125, 200
see page 260, all sludge traps also available in special sizes
Bar cover in stainless steel
Not anti-slip, acid-treated in pickling bath
Rod clearance 18 mm, supporting member 25×8 mm, class M 125
Bathroom cover in stainless steel
Suitable for barefoot area, brushed surface, perforation 8 x 8 mm,
Insertion depth 25 mm, thickness 2 mm, class K 3
Bathroom cover made of polymer
Suitable for barefoot area, with rounded or flat upper profile
Colours white, grey, beige or yellow (other RAL colours and ‚rollable‘
grating available on request) Insertion depth 25 mm, class K 3
h
