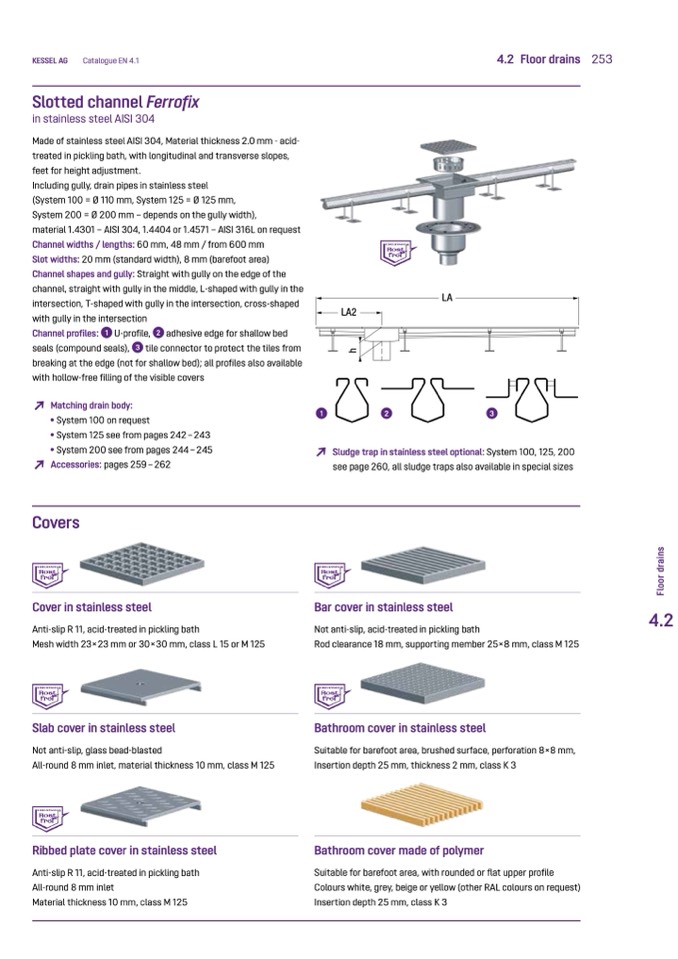

Slotted channel Ferrofix

in stainless steel AISI 304

Made of stainless steel AISI 304, Material thickness 2.0 mm - acid-

treated in pickling bath, with longitudinal and transverse slopes,

feet for height adjustment.

Including gully, drain pipes in stainless steel

(System 100 = Ø 110 mm, System 125 = Ø 125 mm,

System 200 = Ø 200 mm – depends on the gully width),

material 1.4301 – AISI 304, 1.4404 or 1.4571 – AISI 316L on request

Channel widths / lengths: 60 mm, 48 mm / from 600 mm

Slot widths: 20 mm (standard width), 8 mm (barefoot area)

Channel shapes and gully: Straight with gully on the edge of the

channel, straight with gully in the middle, L-shaped with gully in the

intersection, T-shaped with gully in the intersection, cross-shaped

with gully in the intersection

Channel profiles: 1 U-pro

file, 2 adhesive edge for shallow bed

seals (compound seals), 3 tile connector to protect the tiles from

breaking at the edge (not for shallow bed); all profiles also available

with hollow-free filling of the visible covers

↗

Matching drain body:

• System 100 on request

• System 125 see from pages 242 – 243

• System 200 see from pages 244 – 245

↗

Accessories: pages 259 – 262

Covers

Cover in stainless steel

Anti-slip R 11, acid-treated in pickling bath

Mesh width 23×23 mm or 30×30 mm, class L 15 or M 125

Slab cover in stainless steel

Not anti-slip, glass bead-blasted

All-round 8 mm inlet, material thickness 10 mm, class M 125

Ribbed plate cover in stainless steel

Anti-slip R 11, acid-treated in pickling bath

All-round 8 mm inlet

Material thickness 10 mm, class M 125

LA2

↗

Sludge trap in stainless steel optional: System 100, 125, 200

see page 260, all sludge traps also available in special sizes

Bar cover in stainless steel

Not anti-slip, acid-treated in pickling bath

Rod clearance 18 mm, supporting member 25×8 mm, class M 125

Bathroom cover in stainless steel

Suitable for barefoot area, brushed surface, perforation 8×8 mm,

Insertion depth 25 mm, thickness 2 mm, class K 3

Bathroom cover made of polymer

Suitable for barefoot area, with rounded or flat upper profile

Colours white, grey, beige or yellow (other RAL colours on request)

Insertion depth 25 mm, class K 3
