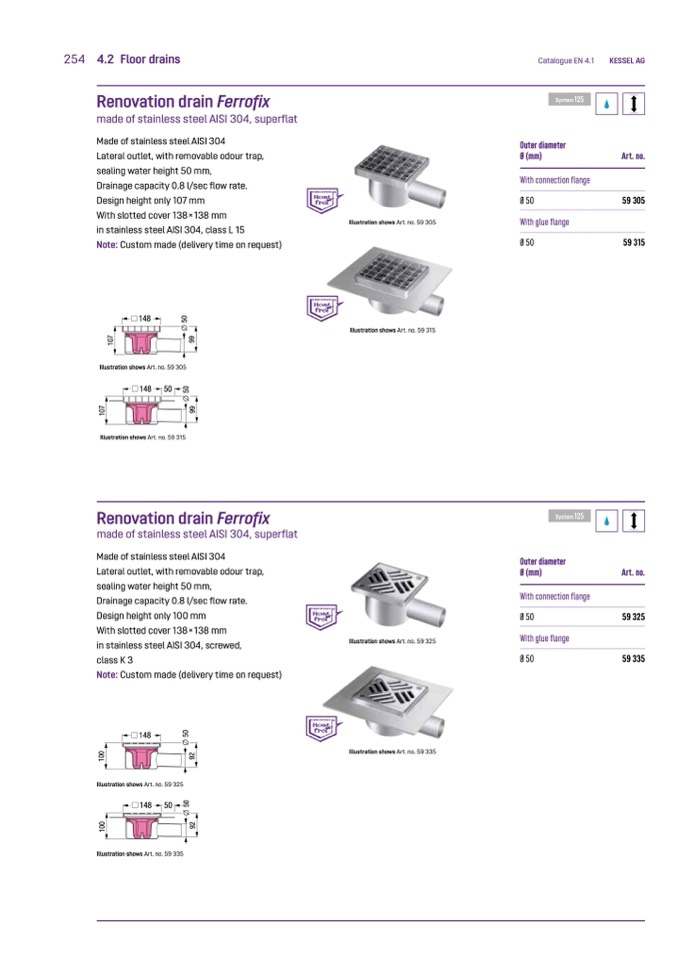

254 4.2 Floor drains

Renovation drain Ferrofix

made of stainless steel AISI 304, superflat

Made of stainless steel AISI 304

Lateral outlet, with removable odour trap,

sealing water height 50 mm,

Drainage capacity 0.8 l/sec flow rate.

Design height only 107 mm

With slotted cover 138×138 mm

in stainless steel AISI 304, class L 15

Note: Custom made (delivery time on request)

148

Illustration shows Art. no. 59 305

148

50

Illustration shows Art. no. 59 315

Renovation drain Ferrofix

made of stainless steel AISI 304, superflat

Made of stainless steel AISI 304

Lateral outlet, with removable odour trap,

sealing water height 50 mm,

Drainage capacity 0.8 l/sec flow rate.

Design height only 100 mm

With slotted cover 138×138 mm

in stainless steel AISI 304, screwed,

class K 3

Note: Custom made (delivery time on request)

148

Illustration shows Art. no. 59 325

148

50

Illustration shows Art. no. 59 335

Illustration shows Art. no. 59 305

Illustration shows Art. no. 59 315

Catalogue EN 4.1

Outer diameter

Ø (mm)

With connection flange

Ø 50

With glue flange

Ø 50

KESSEL AG

Art. no.

59 305

59 315

Illustration shows Art. no. 59 325

Illustration shows Art. no. 59 335

Outer diameter

Ø (mm)

With connection flange

Ø 50

With glue flange

Ø 50

Art. no.

59 325

59 335

1

0

0

1

0

0

1

0

7

1

0

7

9

2

5

0

9

2

5

0

9

9

5

0

9

9

5

0
