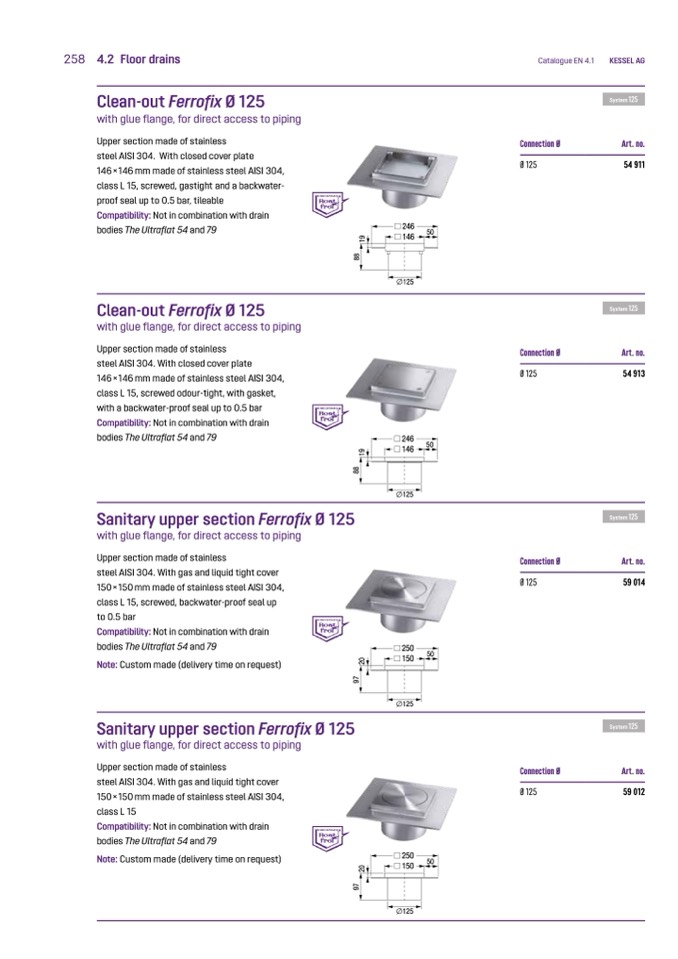

258 4.2 Floor drains

Clean-out Ferrofix Ø 125

with glue flange, for direct access to piping

Upper section made of stainless

steel AISI 304. With closed cover plate

146×146 mm made of stainless steel AISI 304,

class L 15, screwed, gastight and a backwater-

proof seal up to 0.5 bar, tileable

Compatibility: Not in combination with drain

bodies The Ultraflat 54 and 79

Clean-out Ferrofix Ø 125

with glue flange, for direct access to piping

Upper section made of stainless

steel AISI 304. With closed cover plate

146×146 mm made of stainless steel AISI 304,

class L 15, screwed odour-tight, with gasket,

with a backwater-proof seal up to 0.5 bar

Compatibility: Not in combination with drain

bodies The Ultraflat 54 and 79

Sanitary upper section Ferrofix Ø 125

with glue flange, for direct access to piping

Upper section made of stainless

steel AISI 304. With gas and liquid tight cover

150×150 mm made of stainless steel AISI 304,

class L 15, screwed, backwater-proof seal up

to 0.5 bar

Compatibility: Not in combination with drain

bodies The Ultraflat 54 and 79

Note: Custom made (delivery time on request)

Sanitary upper section Ferrofix Ø 125

with glue flange, for direct access to piping

Upper section made of stainless

steel AISI 304. With gas and liquid tight cover

150×150 mm made of stainless steel AISI 304,

class L 15

Compatibility: Not in combination with drain

bodies The Ultraflat 54 and 79

Note: Custom made (delivery time on request)

Catalogue EN 4.1

Connection Ø

Ø 125

KESSEL AG

Art. no.

54 911

246

146

125

50

250

150

125

50

Connection Ø

Ø 125

Art. no.

54 913

246

146

125

50

Connection Ø

Ø 125

Art. no.

59 014

Connection Ø

Ø 125

Art. no.

59 012

250

50

150

125

9

7

2

0

9

7

2

0

8

8

1

9

8

8

1

9
