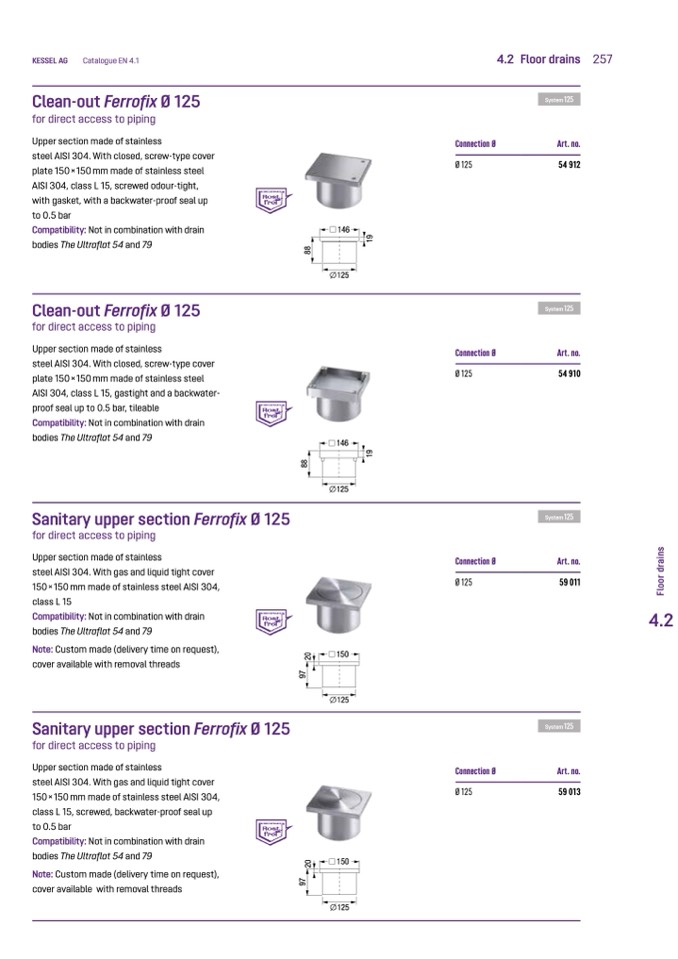

KESSEL AG

Catalogue EN 4.1

4.2

Floor drains 257

Clean-out Ferrofix Ø 125

for direct access to piping

Upper section made of stainless

steel AISI 304. With closed, screw-type cover

plate 150×150 mm made of stainless steel

AISI 304, class L 15, screwed odour-tight,

with gasket, with a backwater-proof seal up

to 0.5 bar

Compatibility: Not in combination with drain

146

bodies The Ultraflat 54 and 79

Connection Ø

Ø 125

Art. no.

54 912

125

Clean-out Ferrofix Ø 125

for direct access to piping

Upper section made of stainless

steel AISI 304. With closed, screw-type cover

plate 150×150 mm made of stainless steel

AISI 304, class L 15, gastight and a backwater-

proof seal up to 0.5 bar, tileable

Compatibility: Not in combination with drain

bodies The Ultraflat 54 and 79

Sanitary upper section Ferrofix Ø 125

for direct access to piping

Upper section made of stainless

steel AISI 304. With gas and liquid tight cover

150×150 mm made of stainless steel AISI 304,

class L 15

Compatibility: Not in combination with drain

bodies The Ultraflat 54 and 79

Note: Custom made (delivery time on request),

cover available with removal threads

Sanitary upper section Ferrofix Ø 125

for direct access to piping

Upper section made of stainless

steel AISI 304. With gas and liquid tight cover

150×150 mm made of stainless steel AISI 304,

class L 15, screwed, backwater-proof seal up

to 0.5 bar

Compatibility: Not in combination with drain

bodies The Ultraflat 54 and 79

Note: Custom made (delivery time on request),

cover available with removal threads

Connection Ø

Ø 125

Art. no.

54 910

146

125

Connection Ø

Ø 125

Art. no.

59 011

150

125

Connection Ø

Ø 125

Art. no.

59 013

150

125
