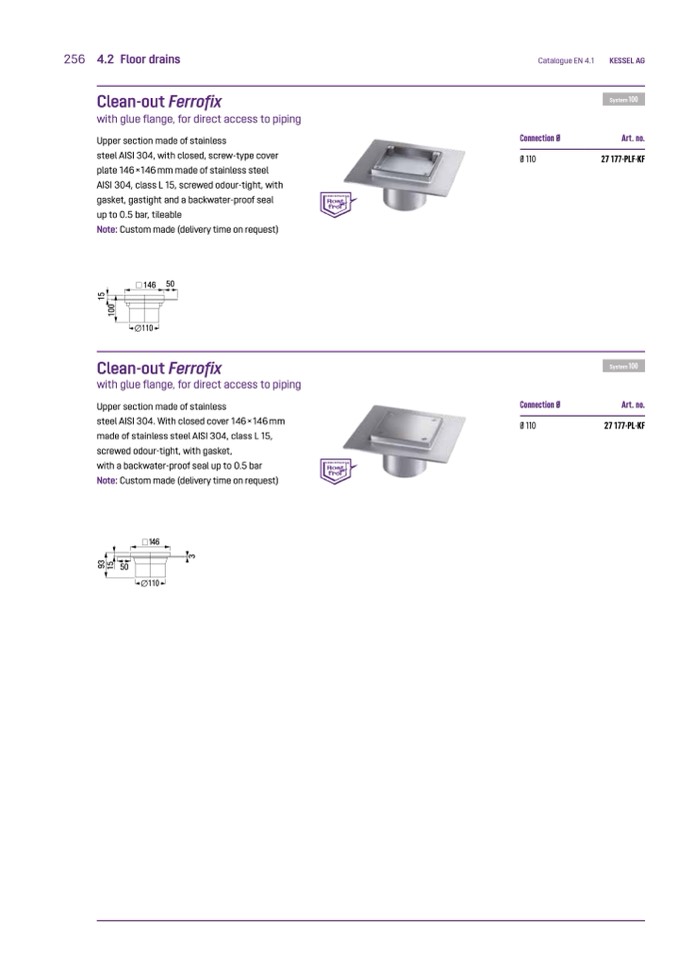

256 4.2 Floor drains

Catalogue EN 4.1

Clean-out Ferrofix

KESSEL AG

Art. no.

27 177-PLF-KF

with glue flange, for direct access to piping

Upper section made of stainless

steel AISI 304, with closed, screw-type cover

plate 146×146 mm made of stainless steel

AISI 304, class L 15, screwed odour-tight, with

gasket, gastight and a backwater-proof seal

up to 0.5 bar, tileable

Note: Custom made (delivery time on request)

146 50

110

Clean-out Ferrofix

with glue flange, for direct access to piping

Upper section made of stainless

steel AISI 304. With closed cover 146×146 mm

made of stainless steel AISI 304, class L 15,

screwed odour-tight, with gasket,

with a backwater-proof seal up to 0.5 bar

Note: Custom made (delivery time on request)

146

110

Connection Ø

Ø 110

Connection Ø

Ø 110

Art. no.

27 177-PL-KF

50

9

3

1

5

1

5

1

0

0

3
