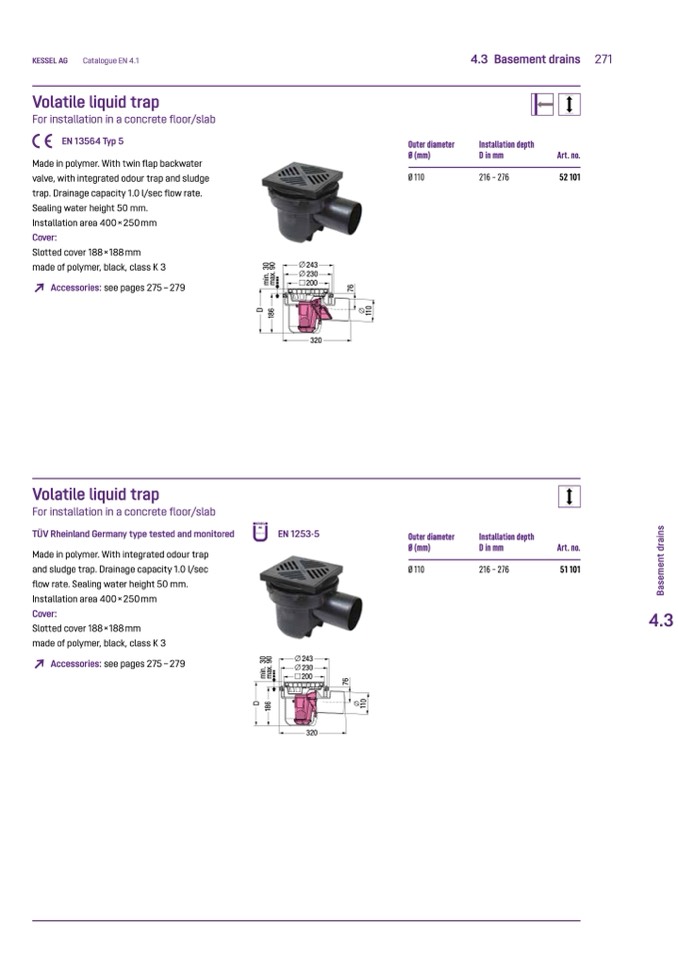

Volatile liquid trap
For installation in a concrete floor/slab
EN 13564 Typ 5
Made in polymer. With twin
flap backwater
valve, with integrated odour trap and sludge
trap. Drainage capacity 1.0 l/sec flow rate.
Sealing water height 50 mm.
Installation area 400×250 mm
Cover:
Slotted cover 188×188 mm
made of polymer, black, class K 3
↗
Accessories: see pages 275 – 279
Outer diameter
Ø (mm)
Ø 110
Installation depth
D in mm
216 – 276
Art. no.
52 101
Volatile liquid trap
For installation in a concrete floor/slab
TÜV Rheinland Germany type tested and monitored
Made in polymer. With integrated odour trap
and sludge trap. Drainage capacity 1.0 l/sec
flow rate. Sealing water height 50 mm.
Installation area 400×250 mm
Cover:
Slotted cover 188×188 mm
made of polymer, black, class K 3
↗
Accessories: see pages 275 – 279
EN 1253-5
243
230
200
320
Outer diameter
Ø (mm)
Ø 110
Installation depth
D in mm
216 – 276
Art. no.
51 101
243
230
200
320
