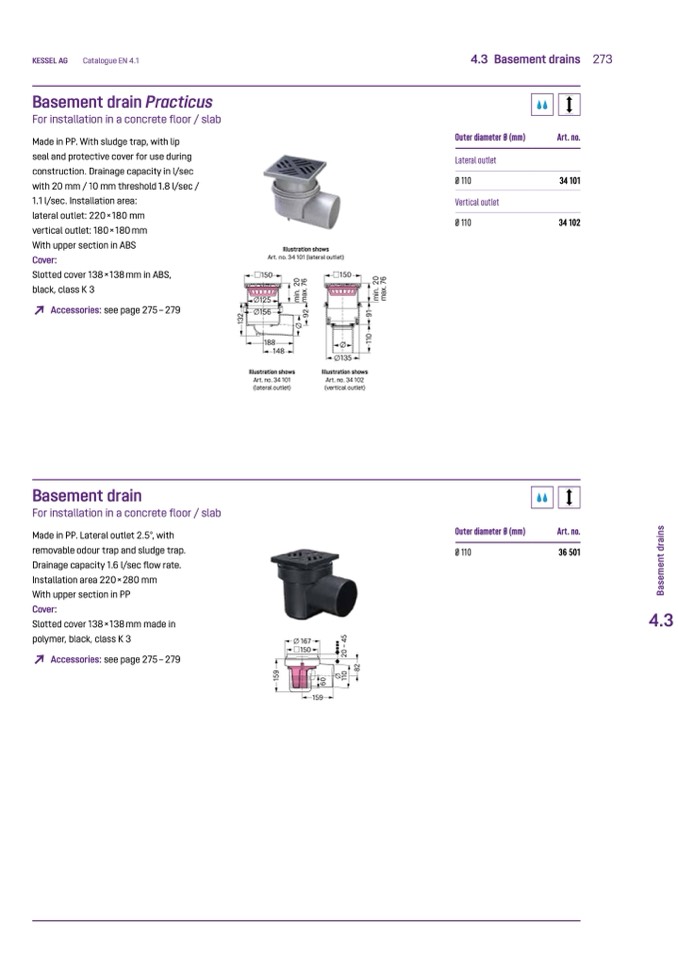

KESSEL AG

Catalogue EN 4.1

4.3 Basement drains

273

Basement drain Practicus

For installation in a concrete floor / slab

Made in PP. With sludge trap, with lip

seal and protective cover for use during

construction. Drainage capacity in l/sec

with 20 mm / 10 mm threshold 1.8 l/sec /

1.1 l/sec. Installation area:

lateral outlet: 220×180 mm

vertical outlet: 180×180 mm

With upper section in ABS

Cover:

Slotted cover 138×138 mm in ABS,

black, class K 3

Outer diameter Ø (mm)

Lateral outlet

Ø 110

Vertical outlet

Ø 110

Art. no.

34 101

34 102

↗

Accessories: see page 275 – 279

150

Ø125

Ø156

188

148

Illustration shows

150

Ø

Ø135

Illustration shows

Basement drain

For installation in a concrete floor / slab

Made in PP. Lateral outlet 2.5°, with

removable odour trap and sludge trap.

Drainage capacity 1.6 l/sec flow rate.

Installation area 220×280 mm

With upper section in PP

Cover:

Slotted cover 138×138 mm made in

polymer, black, class K 3

↗

Accessories: see page 275 – 279

Outer diameter Ø (mm)

Ø 110

Art. no.

36 501

Illustration shows

Art. no. 34 101 (lateral outlet)

6

0

1

5

9

Ø

1

1

0

2

0

–

4

5

8

2

B

a

s

e

m

e

n

t

d

r

a

i

n

s

1

1

0

9

1

m

i

n

.

2

0

m

a

x

.

7

6

Ø

m

i

n

.

2

0

9

2

m

a

x

.

7

6

1

3

2

Art. no. 34 101

(lateral outlet)

Art. no. 34 102

(vertical outlet)

Ø 167

150

159

4.3
