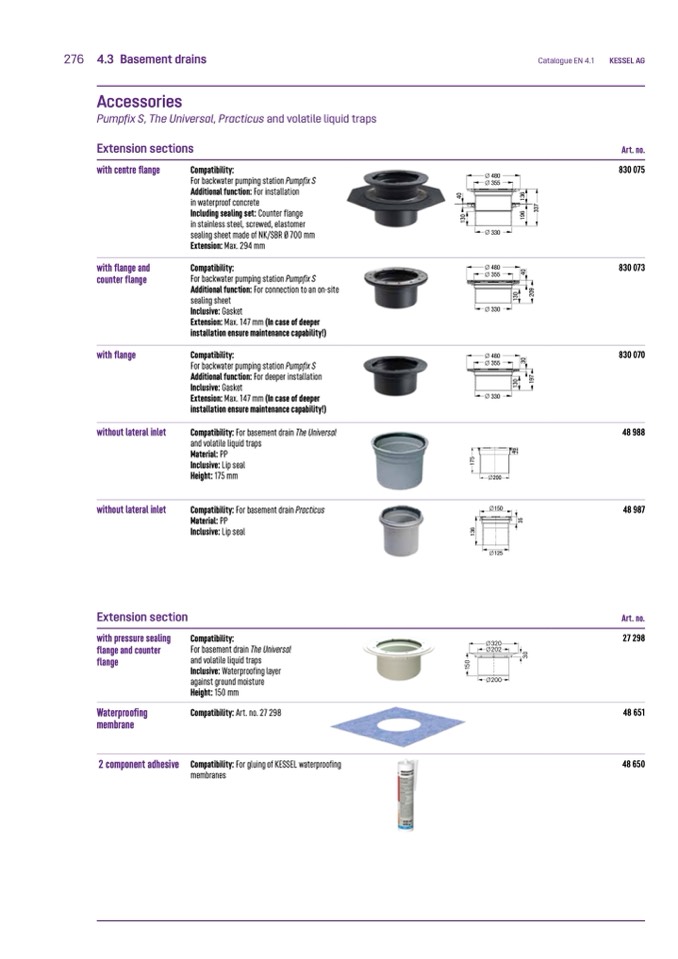

276 4.3 Basement drains

Accessories

Pumpfix S, The Universal, Practicus and volatile liquid traps

Extension sections

Catalogue EN 4.1

KESSEL AG

Art. no.

830 075

830 073

830 070

48 988

48 987

Art. no.

27 298

48 651

48 650

with centre flange

with flange and

counter flange

with flange

without lateral inlet

without lateral inlet

Extension section

with pressure sealing

flange and counter

flange

Waterproofing

membrane

2 component adhesive

Compatibility:

For backwater pumping station Pumpfix S

Additional function: For installation

in waterproof concrete

Including sealing set: Counter flange

in stainless steel, screwed, elastomer

sealing sheet made of NK/SBR Ø 700 mm

Extension: Max. 294 mm

Compatibility:

For backwater pumping station Pumpfix S

Additional function: For connection to an on-site

sealing sheet

Inclusive: Gasket

Extension: Max. 147 mm (In case of deeper

installation ensure maintenance capability!)

Compatibility:

For backwater pumping station Pumpfix S

Additional function: For deeper installation

Inclusive: Gasket

Extension: Max. 147 mm (In case of deeper

installation ensure maintenance capability!)

Compatibility: For basement drain The Universal

and volatile liquid traps

Material: PP

Inclusive: Lip seal

Height: 175 mm

Compatibility: For basement drain Practicus

Material: PP

Inclusive: Lip seal

480

355

330

480

355

330

480

355

330

200

150

125

156

Compatibility:

320

For basement drain The Universal

202

and volatile liquid traps

Inclusive: Waterproofing layer

1

5

0

1

3

6

1

7

5

3

0

3

0

4

0

1

9

6

1

3

6

3

3

7

3

5

4

6

1

3

0

1

9

7

1

3

0

2

0

9

1

3

0

4

0

against ground moisture

Height: 150 mm

Compatibility: Art. no. 27 298

Compatibility: For gluing of KESSEL waterproofing

membranes

200
