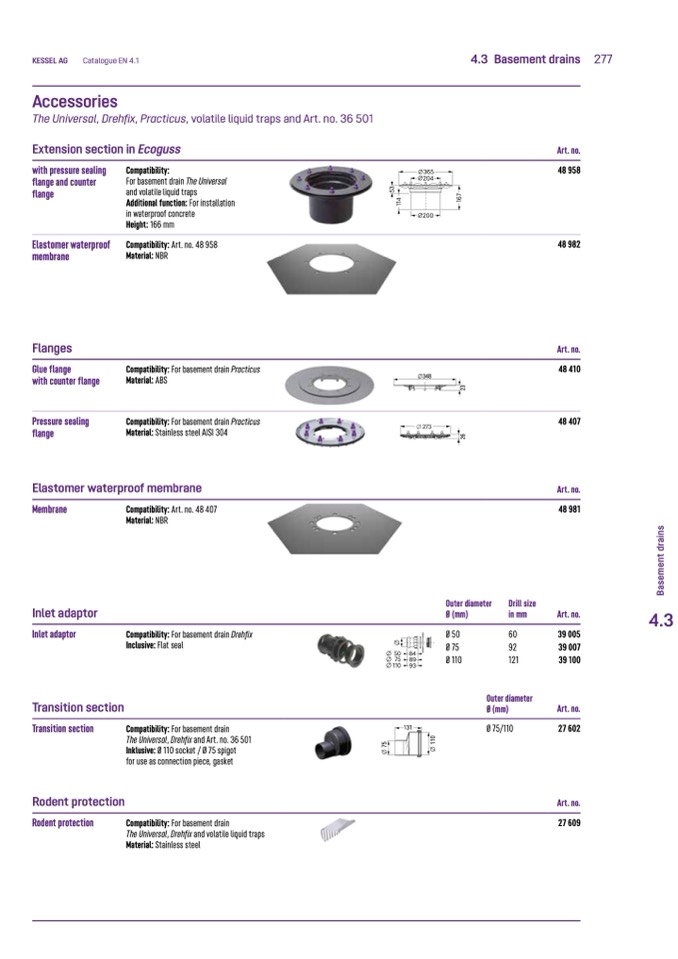

KESSEL AG

Catalogue EN 4.1

4.3

Basement drains 277

Accessories

The Universal, Drehfix, Practicus, volatile liquid traps and Art. no. 36 501

Extension section in Ecoguss

Art. no.

48 958

48 982

Art. no.

48 410

48 407

Art. no.

48 981

Art. no.

FOTO. 48401

with pressure sealing

flange and counter

flange

Elastomer waterproof

membrane

Flanges

Glue flange

with counter flange

Pressure sealing

flange

Compatibility:

For basement drain The Universal

and volatile liquid traps

Additional function: For installation

in waterproof concrete

Height: 166 mm

Compatibility: Art. no. 48 958

Material: NBR

Compatibility: For basement drain Practicus

Material: ABS

Compatibility: For basement drain Practicus

Material: Stainless steel AISI 304

Ø 365

Ø204

Ø200

Elastomer waterproof membrane

Membrane

Inlet adaptor

Inlet adaptor

Transition section

Transition section

Rodent protection

Rodent protection

Compatibility: Art. no. 48 407

Material: NBR

Compatibility: For basement drain Drehfix

Inclusive: Flat seal

Compatibility: For basement drain

The Universal, Drehfix and Art. no. 36 501

Inklusive: Ø 110 socket / Ø 75 spigot

for use as connection piece, gasket

Compatibility: For basement drain

The Universal, Drehfix and volatile liquid traps

Material: Stainless steel

Outer diameter

Ø (mm)

Ø50

Ø75

Ø 110

Drill size

in mm

60

92

39007

121

39 100

4.3

Ø50 84

Ø75 89

Ø110 93

131

Outer diameter

Ø (mm)

Ø 75/110

Art. no.

27 602

Art. no.

27 609

348

39 005
