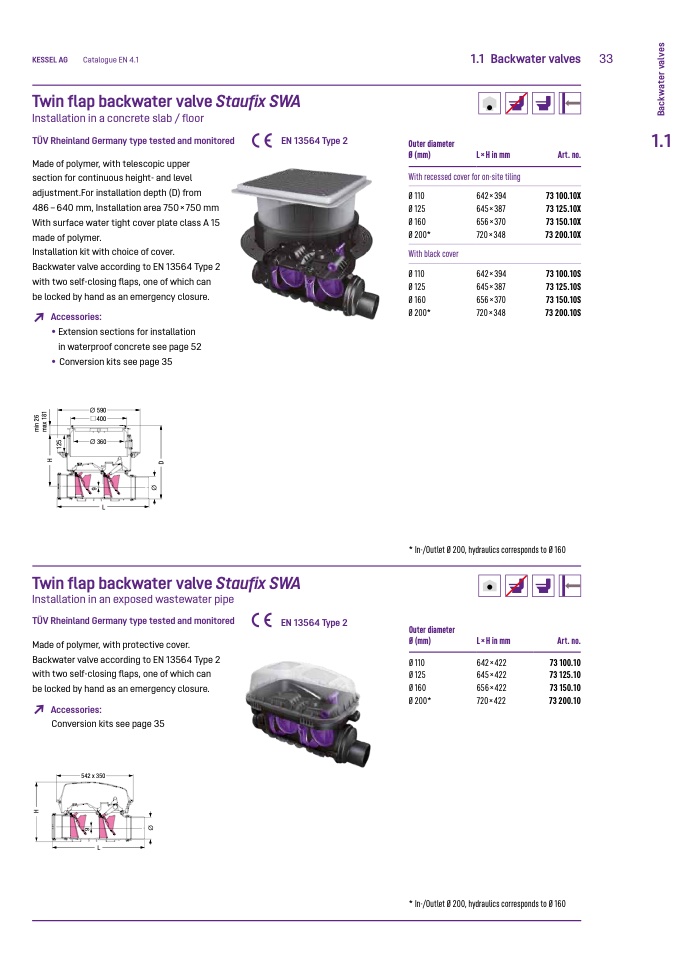

KESSEL AG

Catalogue EN 4.1

1.1 Backwater valves

33

Twin flap backwater valve Staufix SWA

Installation in a concrete slab / floor

TÜV Rheinland Germany type tested and monitored

Made of polymer, with telescopic upper

section for continuous height- and level

adjustment.For installation depth (D) from

486 – 640 mm, Installation area 750×750 mm

With surface water tight cover plate class A 15

made of polymer.

Installation kit with choice of cover.

Backwater valve according to EN 13564 Type 2

with two self-closing flaps, one of which can

be locked by hand as an emergency closure.

↗

Accessories:

• Extension sections for installation

in waterproof concrete see page 52

• Conversion kits see page 35

Ø 590

400

Ø 360

L

EN 13564 Type 2

Outer diameter

Ø (mm)

1.1

Twin flap backwater valve Staufix SWA

Installation in an exposed wastewater pipe

TÜV Rheinland Germany type tested and monitored

Made of polymer, with protective cover.

Backwater valve according to EN 13564 Type 2

with two self-closing flaps, one of which can

be locked by hand as an emergency closure.

↗

Accessories:

Conversion kits see page 35

542 x 350

L

EN 13564 Type 2

Outer diameter

Ø (mm)

Ø 110

Ø 125

Ø 160

Ø 200*

With recessed cover for on-site tiling

Ø 110

Ø 125

Ø 160

Ø 200*

With black cover

Ø 110

Ø 125

Ø 160

Ø 200*

642 × 394

645 × 387

656 × 370

720 × 348

642 × 394

645 × 387

656 × 370

720 × 348

L×H in mm

Art. no.

73 100.10X

73 125.10X

73 150.10X

73 200.10X

73 100.10S

73 125.10S

73 150.10S

73 200.10S

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160

L×H in mm

642 × 422

645 × 422

656 × 422

720 × 422

Art. no.

73 100.10

73 125.10

73 150.10

73 200.10

9

9

Ø

Ø

H

m

i

n

2

6

m

a

x

1

8

1

D

H

1

2

5

B

a

c

k

w

a

t

e

r

v

a

l

v

e

s

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160
