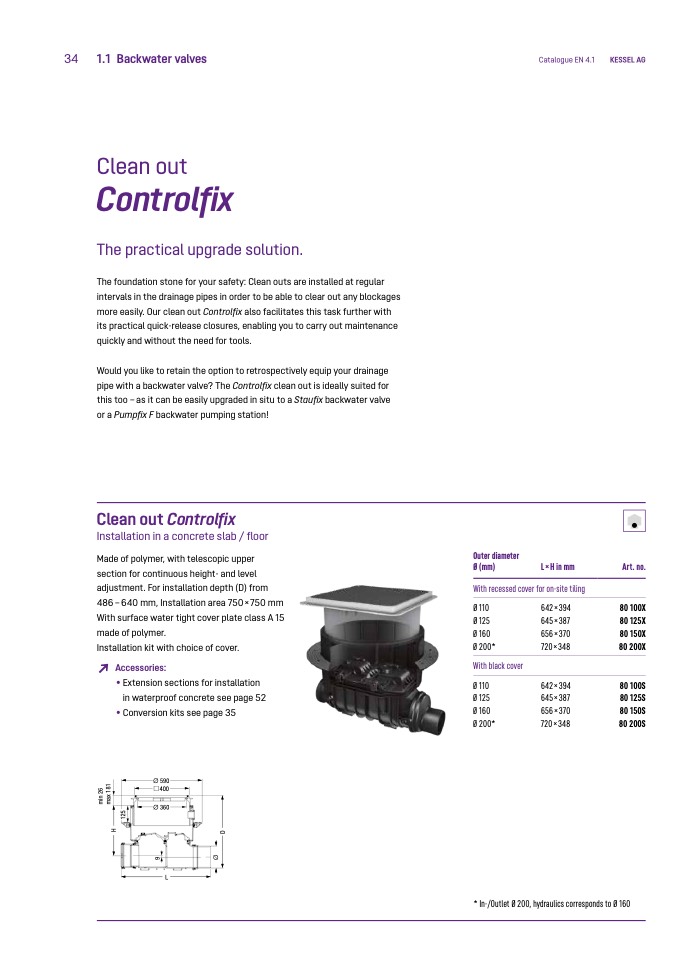

34

1.1 Backwater valves

Catalogue EN 4.1

KESSEL AG

Clean out

Controlfix

The practical upgrade solution.

The foundation stone for your safety: Clean outs are installed at regular

intervals in the drainage pipes in order to be able to clear out any blockages

more easily. Our clean out Controlfix also facilitates this task further with

its practical quick-release closures, enabling you to carry out maintenance

quickly and without the need for tools.

Would you like to retain the option to retrospectively equip your drainage

pipe with a backwater valve? The Controlfix clean out is ideally suited for

this too – as it can be easily upgraded in situ to a Staufix backwater valve

or a Pumpfix F backwater pumping station!

Clean out Controlfix

Installation in a concrete slab / floor

Made of polymer, with telescopic upper

section for continuous height- and level

adjustment. For installation depth (D) from

486 – 640 mm, Installation area 750×750 mm

With surface water tight cover plate class A 15

made of polymer.

Installation kit with choice of cover.

↗

Accessories:

• Extension sections for installation

in waterproof concrete see page 52

• Conversion kits see page 35

Ø 590

400

Ø 360

Outer diameter

Ø (mm)

L×H in mm

Art. no.

80 100X

80 125X

80 150X

80 200X

80 100S

80 125S

80 150S

80 200S

9

Ø

D

H

1

2

5

m

i

n

2

6

m

a

x

1

8

1

L

With recessed cover for on-site tiling

Ø 110

Ø 125

Ø 160

Ø 200*

With black cover

Ø 110

Ø 125

Ø 160

Ø 200*

642 × 394

645 × 387

656 × 370

720 × 348

642 × 394

645 × 387

656 × 370

720 × 348

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160
