KESSEL AG

Catalogue EN 4.1

1.1 Backwater valves

35

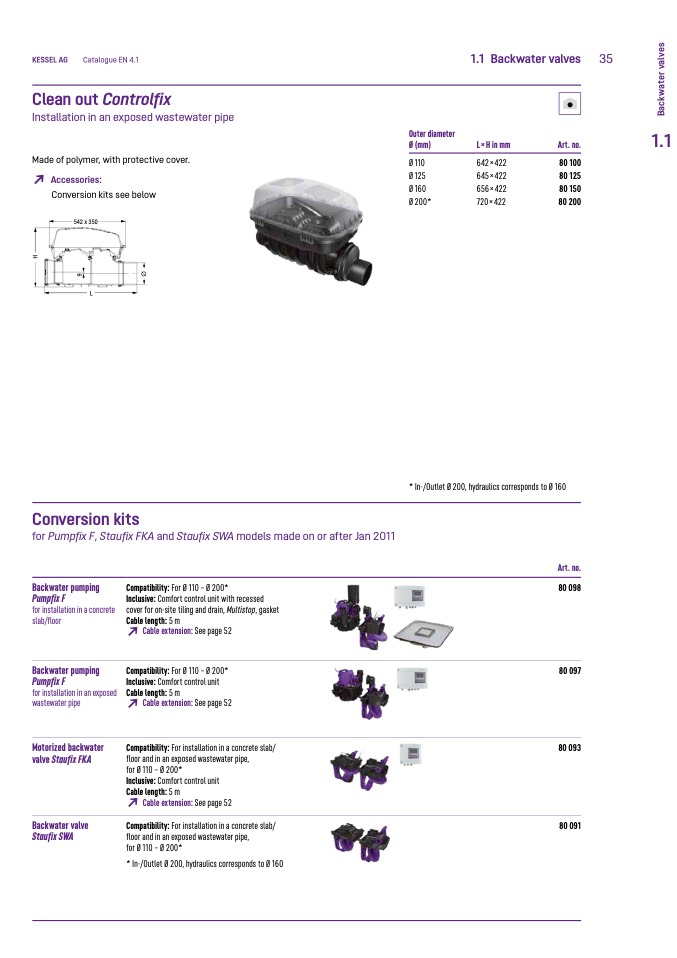

Clean out Controlfix

Installation in an exposed wastewater pipe

Made of polymer, with protective cover.

↗

Accessories:

Conversion kits see below

542 x 350

L

Outer diameter

Ø (mm)

Ø 110

Ø 125

Ø 160

Ø 200*

L×H in mm

642 × 422

645 × 422

656 × 422

720 × 422

Art. no.

80 100

80 125

80 150

80 200

1.1

9

Ø

H

B

a

c

k

w

a

t

e

r

v

a

l

v

e

s

Conversion kits

for Pumpfix F, Staufix FKA and Staufix SWA models made on or after Jan 2011

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160

Art. no.

80 098

80 097

80 093

80 091

Backwater pumping

Pumpfix F

for installation in a concrete

slab/floor

Backwater pumping

Pumpfix F

for installation in an exposed

wastewater pipe

Motorized backwater

valve Staufix FKA

Backwater valve

Staufix SWA

Compatibility: For Ø 110 – Ø 200*

Inclusive: Comfort control unit with recessed

cover for on-site tiling and drain, Multistop, gasket

Cable length: 5 m

↗

Cable extension: See page 52

Compatibility: For Ø 110 – Ø 200*

Inclusive: Comfort control unit

Cable length: 5 m

↗

Cable extension: See page 52

Compatibility: For installation in a concrete slab/

floor and in an exposed wastewater pipe,

forØ110–Ø200*

Inclusive: Comfort control unit

Cable length: 5 m

↗

Cable extension: See page 52

Compatibility: For installation in a concrete slab/

floor and in an exposed wastewater pipe,

forØ110–Ø200*

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160
