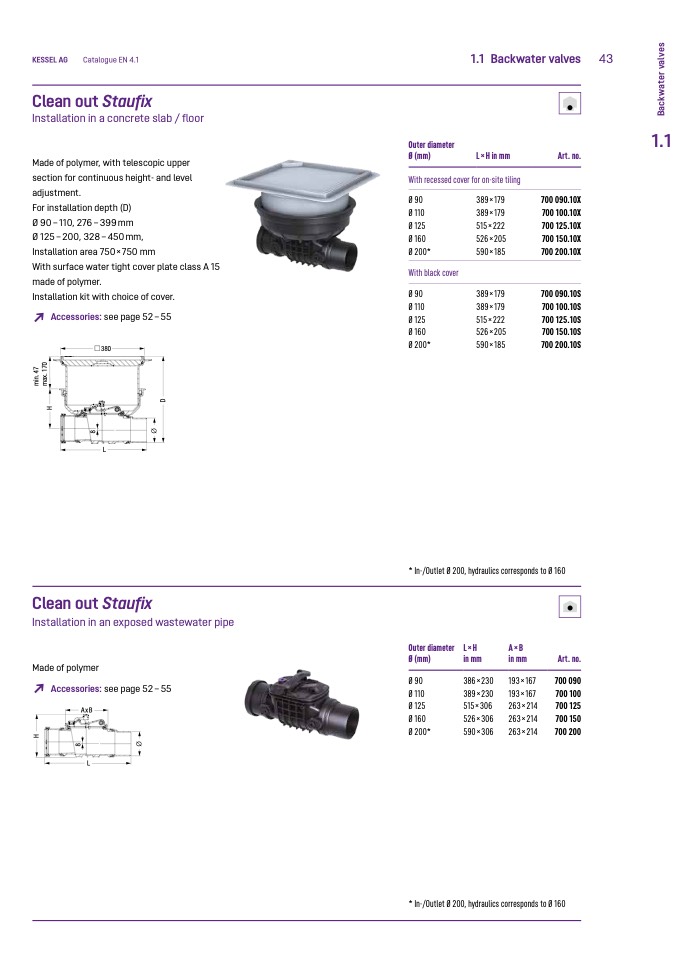

KESSEL AG

Catalogue EN 4.1

1.1 Backwater valves

43

Clean out Stau

fix

Installation in a concrete slab / floor

Made of polymer, with telescopic upper

section for continuous height- and level

adjustment.

For installation depth (D)

Ø 90–110, 276–399mm

Ø 125–200, 328–450mm,

Installation area 750×750 mm

With surface water tight cover plate class A 15

made of polymer.

Installation kit with choice of cover.

↗

Accessories: see page 52 – 55

380

L

Clean out Stau

fix

Installation in an exposed wastewater pipe

Made of polymer

↗

Accessories: see page 52 – 55

AxB

L

Outer diameter

Ø (mm)

L×H in mm

Art. no.

700 090.10X

700 100.10X

700 125.10X

700 150.10X

700 200.10X

700 090.10S

700 100.10S

700 125.10S

700 150.10S

700 200.10S

1.1

With recessed cover for on-site tiling

Ø90

Ø 110

Ø 125

Ø 160

Ø 200*

With black cover

Ø90

Ø 110

Ø 125

Ø 160

Ø 200*

389 × 179

389 × 179

515 × 222

526 × 205

590 × 185

389 × 179

389 × 179

515 × 222

526 × 205

590 × 185

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160

Outer diameter

Ø (mm)

Ø90

Ø 110

Ø 125

Ø 160

Ø 200*

L×H

in mm

386 × 230

389 × 230

515 × 306

526 × 306

590 × 306

A×B

in mm

193 × 167

193 × 167

263 × 214

263 × 214

263 × 214

Art. no.

700 090

700 100

700 125

700 150

700 200

8

Ø

H

m

i

n

.

4

7

m

a

x

.

1

7

0

8

Ø

H

D

B

a

c

k

w

a

t

e

r

v

a

l

v

e

s

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160
