1.2 Backwater chambers

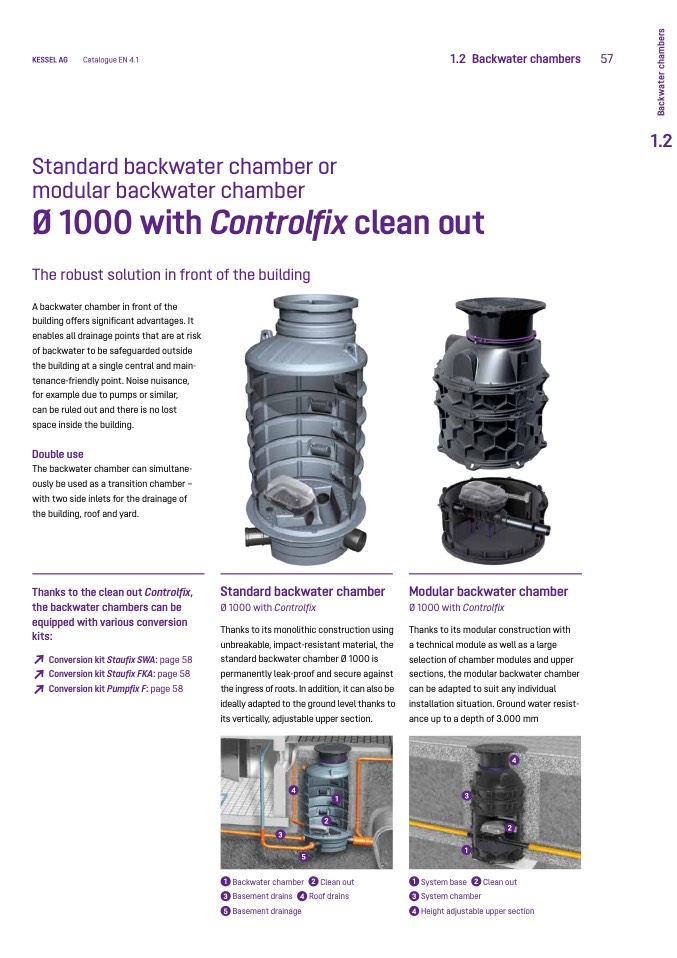

57 Standard backwater chamber or

modular backwater chamber

Ø 1000 with Controlfix clean out

The robust solution in front of the building

A backwater chamber in front of the

building offers signi

ficant advantages. It

enables all drainage points that are at risk

of backwater to be safeguarded outside

the building at a single central and main-

tenance-friendly point. Noise nuisance,

for example due to pumps or similar,

can be ruled out and there is no lost

space inside the building.

Double use

The backwater chamber can simultane-

ously be used as a transition chamber –

with two side inlets for the drainage of

the building, roof and yard.

Thanks to the clean out Controlfix,

the backwater chambers can be

equipped with various conversion

kits:

↗

Conversion kit Staufix SWA: page 58

↗

Conversion kit Staufix FKA: page 58

↗

Conversion kit Pumpfix F: page 58

Standard backwater chamber

Ø 1000 with Controlfix

Thanks to its monolithic construction using

unbreakable, impact-resistant material, the

standard backwater chamber Ø 1000 is

permanently leak-proof and secure against

the ingress of roots. In addition, it can also be

ideally adapted to the ground level thanks to

its vertically, adjustable upper section.

Modular backwater chamber

Ø 1000 with Controlfix

Thanks to its modular construction with

a technical module as well as a large

selection of chamber modules and upper

sections, the modular backwater chamber

can be adapted to suit any individual

installation situation. Ground water resist-

ance up to a depth of 3.000 mm

1 Backwater chamber

3 Basement drains 4

5 Basement drainage

2 Clean out

Roof drains

1 System base

3 System chamber

4 Height adjustable upper section

2 Clean out
