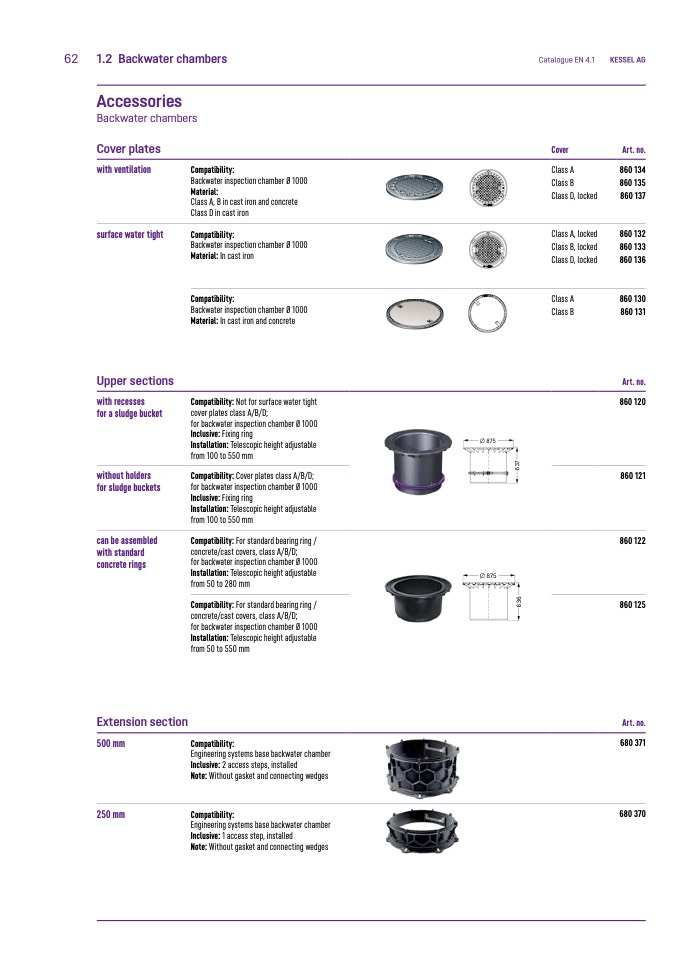

62

1.2 Backwater chambers

Accessories

Backwater chambers

Catalogue EN 4.1

KESSEL AG

Art. no.

860 134

860 135

860 137

860 132

860 133

860 136

860 130

860 131

Art. no.

860 120

860 121

860 122

860 125

Art. no.

680 371

680 370

Cover plates

with ventilation

surface water tight

Upper sections

with recesses

for a sludge bucket

without holders

for sludge buckets

can be assembled

with standard

concrete rings

Compatibility:

Backwater inspection chamber Ø 1000

Material:

Class A, B in cast iron and concrete

Class D in cast iron

Compatibility:

Backwater inspection chamber Ø 1000

Material: In cast iron

Compatibility:

Backwater inspection chamber Ø 1000

Material: In cast iron and concrete

Compatibility: Not for surface water tight

cover plates class A/B/D;

for backwater inspection chamber Ø 1000

Inclusive: Fixing ring

Installation: Telescopic height adjustable

from 100 to 550 mm

Compatibility: Cover plates class A/B/D;

for backwater inspection chamber Ø 1000

Inclusive: Fixing ring

Installation: Telescopic height adjustable

from 100 to 550 mm

Compatibility: For standard bearing ring /

concrete/cast covers, class A/B/D;

for backwater inspection chamber Ø 1000

Installation: Telescopic height adjustable

from 50 to 280 mm

Compatibility: For standard bearing ring /

concrete/cast covers, class A/B/D;

for backwater inspection chamber Ø 1000

Installation: Telescopic height adjustable

from 50 to 550 mm

Compatibility:

Engineering systems base backwater chamber

Inclusive: 2 access steps, installed

Note: Without gasket and connecting wedges

Compatibility:

Engineering systems base backwater chamber

Inclusive: 1 access step, installed

Note: Without gasket and connecting wedges

Cover

Class

Class

Class

Class

Class

Class

Class

Class

A

B

D, locked

A, locked

B, locked

D, locked

A

B

6

3

6

6

3

7

Extension section

500 mm

250 mm

875

875
