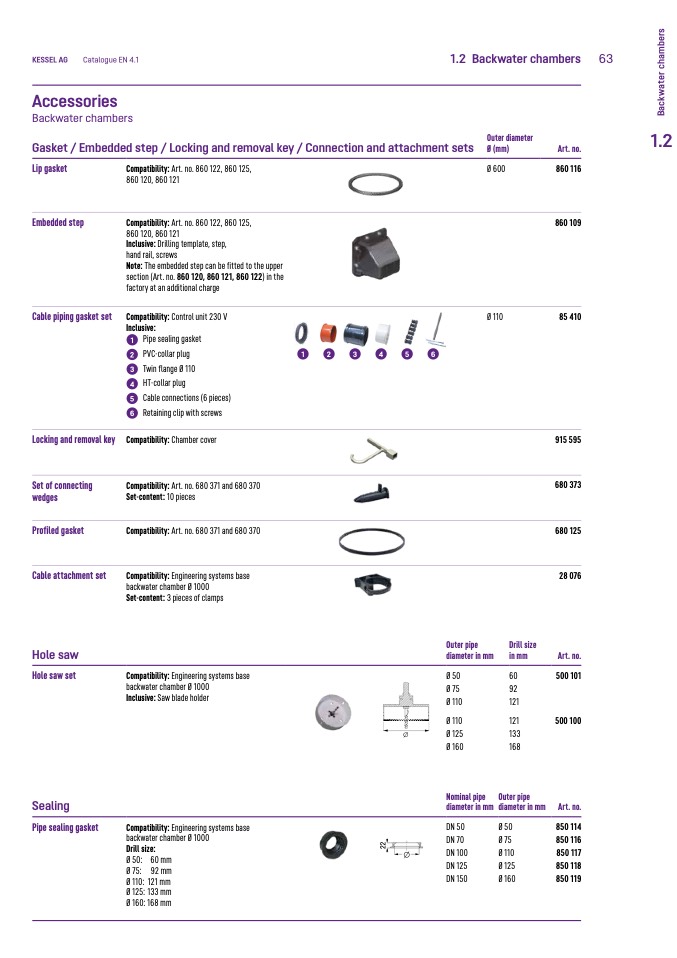

1.2 Backwater chambers 63

Accessories

Backwater chambers

Gasket / Embedded step / Locking and removal key / Connection and attachment sets

Outer diameter

Ø (mm)

Art. no.

860 116

860 109

85 410

915 595

680 373

680 125

28 076

Art. no.

500 101

500 100

Art. no.

850 117

850 118

850 119

Lip gasket

Embedded step

Cable piping gasket set

Locking and removal key

Set of connecting

wedges

Profiled gasket

Cable attachment set

Hole saw

Hole saw set

Sealing

Pipe sealing gasket

Compatibility: Art. no. 860 122, 860 125,

860 120, 860 121

Compatibility: Art. no. 860 122, 860 125,

860 120, 860 121

Inclusive: Drilling template, step,

hand rail, screws

Note: The embedded step can be fitted to the upper

section (Art. no. 860 120, 860 121, 860 122) in the

factory at an additional charge

Compatibility: Control unit 230 V

Inclusive:

1

Pipe sealing gasket

2

PVC-collarplug

3

Twin flange Ø 110

4 HT-collar plug

5 Cable connections (6 pieces)

6 Retaining clip with screws

Compatibility: Chamber cover

Compatibility: Art. no. 680 371 and 680 370

Set-content: 10 pieces

Compatibility: Art. no. 680 371 and 680 370

Compatibility: Engineering systems base

backwater chamber Ø 1000

Set-content: 3 pieces of clamps

Compatibility: Engineering systems base

backwater chamber Ø 1000

Inclusive: Saw blade holder

Compatibility: Engineering systems base

backwater chamber Ø 1000

Drill size:

Ø 50: 60 mm

Ø 75: 92 mm

Ø 110: 121 mm

Ø 125: 133 mm

Ø 160: 168 mm

Ø 600

Ø 110

1

2

3

4

5

6

Outer pipe

diameter in mm

Ø50

Ø75

Ø 110

Ø 110

Ø125

Ø 160

Nominal pipe

diameter in mm

DN 50

DN70

DN 100

DN 125

DN 150

Drill size

in mm

60

92

121

121

133

168

Outer pipe

diameter in mm

Ø 50

Ø75

850116

850 114

Ø 110

Ø 125

Ø 160
