2.1 Backwater pumping stations

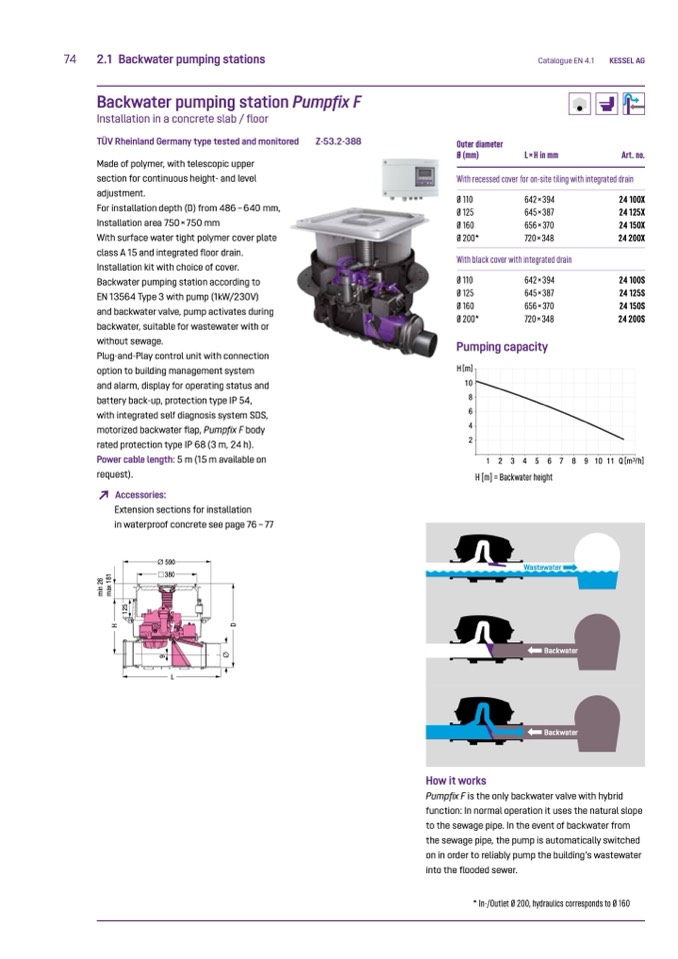

Backwater pumping station Pumpfix F
Catalogue EN 4.1
L×H in mm
KESSEL AG
Art. no.
Installation in a concrete slab / floor
TÜV Rheinland Germany type tested and monitored
Made of polymer, with telescopic upper
section for continuous height- and level
adjustment.
For installation depth (D) from 486 – 640 mm,
Installation area 750×750 mm
With surface water tight polymer cover plate
class A 15 and integrated floor drain.
Installation kit with choice of cover.
Backwater pumping station according to
EN 13564 Type 3 with pump (1kW/230V)
and backwater valve, pump activates during
backwater, suitable for wastewater with or
without sewage.
Plug-and-Play control unit with connection
option to building management system
and alarm, display for operating status and
battery back-up, protection type IP 54,
with integrated self diagnosis system SDS,
motorized backwater flap, Pumpfix F body
rated protection type IP 68 (3 m, 24 h).
Power cable length: 5 m (15 m available on
request).
↗
Accessories:
Extension sections for installation
in waterproof concrete see page 76 – 77
Ø 590
380
L
Z-53.2-388
Outer diameter
Ø (mm)
How it works
With recessed cover for on-site tiling with integrated drain
Ø 110
Ø 125
Ø 160
Ø 200*
642 × 394
645 × 387
656 × 370
720 × 348
24 100X
24 125X
24 150X
24 200X
24 100S
24 125S
24 150S
24 200S
Q [m
3
/h]
With black cover with integrated drain
Ø 110
Ø 125
Ø 160
Ø 200*
642 × 394
645 × 387
656 × 370
720 × 348
Pumping capacity
H [m]
10
8
6
4
2
1 2 3
4 5
6 7 8
9 10 11
H [m] = Backwater height
Wastewater
Backwater
Backwater
9
Ø
D
H
1
2
5
m
i
n
2
6
m
a
x
1
8
1
Pumpfix F is the only backwater valve with hybrid
function: In normal operation it uses the natural slope
to the sewage pipe. In the event of backwater from
the sewage pipe, the pump is automatically switched
on in order to reliably pump the building’s wastewater
into the flooded sewer.
* In-/Outlet Ø 200, hydraulics corresponds to Ø 160
