KESSEL AG

Catalogue EN 4.1

2.1 Backwater pumping stations

75

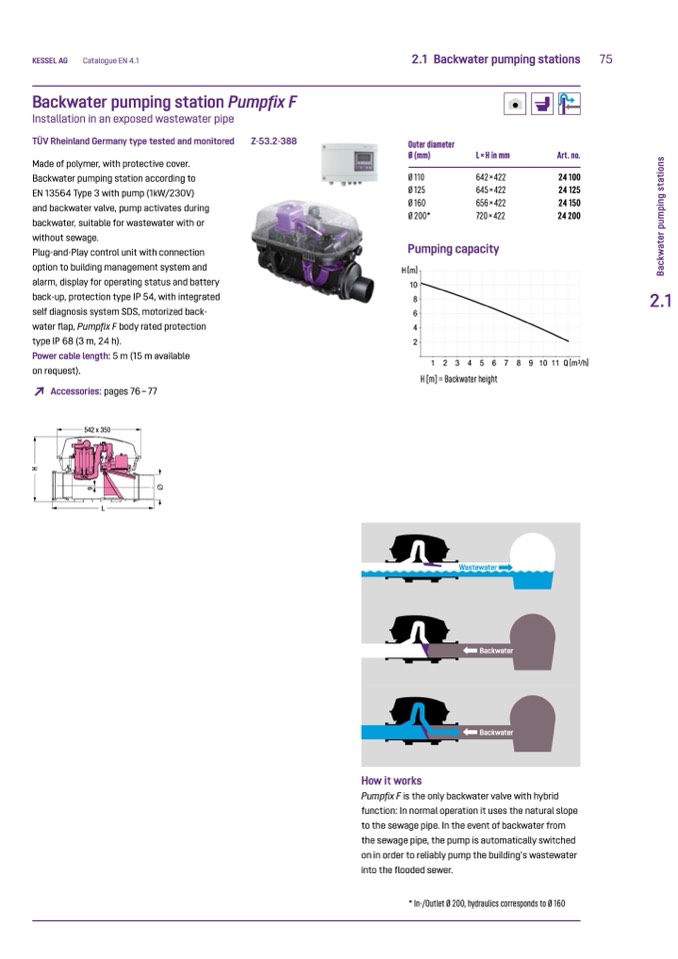

Backwater pumping station Pumpfix F

Installation in an exposed wastewater pipe

TÜV Rheinland Germany type tested and monitored

Made of polymer, with protective cover.

Backwater pumping station according to

EN 13564 Type 3 with pump (1kW/230V)

and backwater valve, pump activates during

backwater, suitable for wastewater with or

without sewage.

Plug-and-Play control unit with connection

option to building management system and

alarm, display for operating status and battery

back-up, protection type IP 54, with integrated

self diagnosis system SDS, motorized back-

water flap, Pumpfix F body rated protection

type IP 68 (3 m, 24 h).

Power cable length: 5 m (15 m available

on request).

↗

Accessories: pages 76 – 77

542 x 350

L

Z-53.2-388

Outer diameter

Ø (mm)

Ø 110

Ø 125

Ø 160

Ø 200*

How it works

Pumping capacity

H [m]

10

8

6

4

2

2.1

L×H in mm

642 × 422

645 × 422

656 × 422

720 × 422

Art. no.

24 100

24 125

24 150

24 200

1 2 3 4 5 6 7 8 9 10 11 Q[m

3

/h]

H [m] = Backwater height

9

Ø

H

B

a

c

k

w

a

t

e

r

p

u

m

p

i

n

g

s

t

a

t

i

o

n

s

Wastewater

Backwater

Backwater

Pumpfix F is the only backwater valve with hybrid

function: In normal operation it uses the natural slope

to the sewage pipe. In the event of backwater from

the sewage pipe, the pump is automatically switched

on in order to reliably pump the building’s wastewater

into the flooded sewer.

* In-/Outlet Ø 200, hydraulics corresponds to Ø 160
