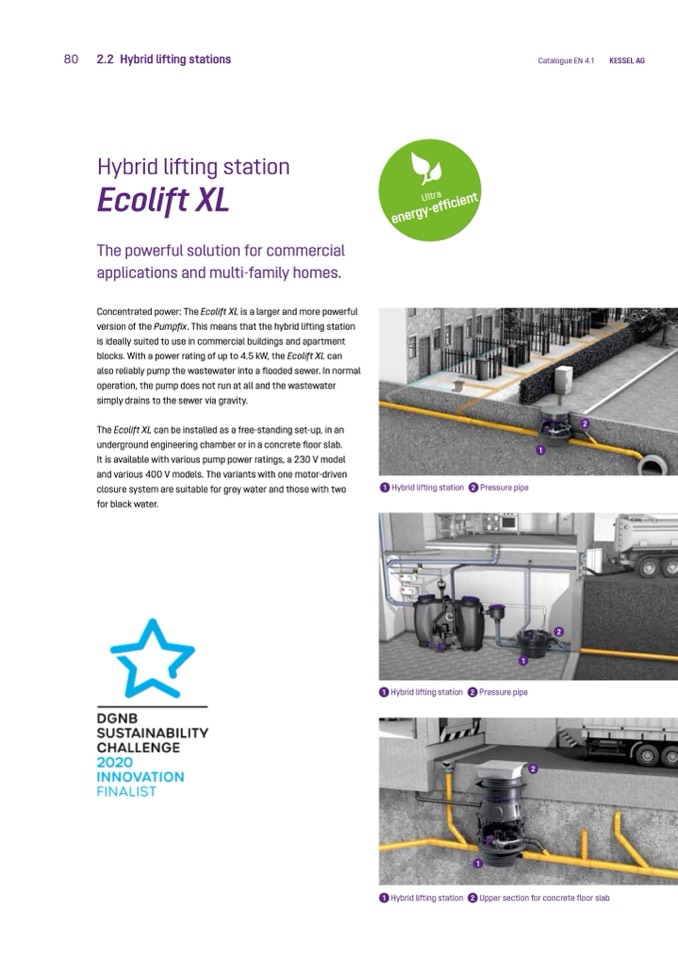

80 2.2 Hybrid lifting stations

Catalogue EN 4.1

KESSEL AG

Hybrid lifting station

Ecolift XL

The powerful solution for commercial

applications and multi-family homes.

Concentrated power: The Ecolift XL is a larger and more powerful

version of the Pumpfix. This means that the hybrid lifting station

is ideally suited to use in commercial buildings and apartment

blocks. With a power rating of up to 4.5 kW, the Ecolift XL can

also reliably pump the wastewater into a flooded sewer. In normal

operation, the pump does not run at all and the wastewater

simply drains to the sewer via gravity.

The Ecolift XL can be installed as a free-standing set-up, in an

underground engineering chamber or in a concrete floor slab.

It is available with various pump power ratings, a 230 V model

and various 400 V models. The variants with one motor-driven

closure system are suitable for grey water and those with two

for black water.

2

1

1 Hybrid lifting station

2 Pressure pipe

1 Hybrid lifting station

2

1

2 Pressure pipe

1 Hybrid lifting station

2 Upper section for concrete floor slab

2

1

Ultra

energy-efficient
