2.2 Hybrid lifting stations

81

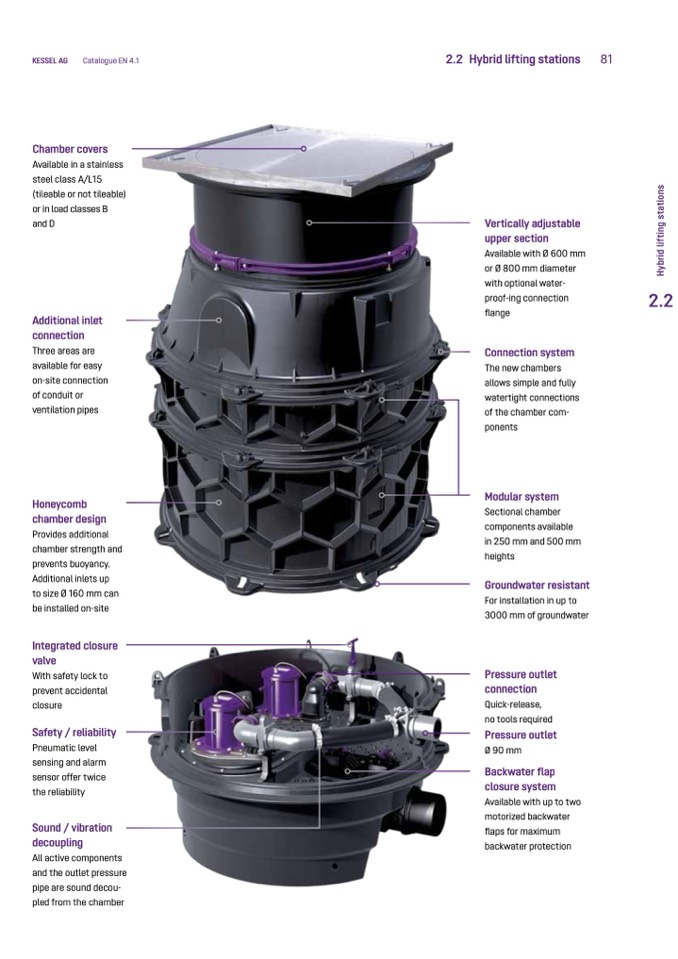

Chamber covers

Available in a stainless

steel class A/L15

(tileable or not tileable)

or in load classes B

and D

Additional inlet

connection

Three areas are

available for easy

on-site connection

of conduit or

ventilation pipes

Honeycomb

chamber design

Provides additional

chamber strength and

prevents buoyancy.

Additional inlets up

to size Ø 160 mm can

be installed on-site

Integrated closure

valve

With safety lock to

prevent accidental

closure

Safety / reliability

Pneumatic level

sensing and alarm

sensor offer twice

the reliability

Sound / vibration

decoupling

All active components

and the outlet pressure

pipe are sound decou-

pled from the chamber

Vertically adjustable

upper section

Available with Ø 600 mm

or Ø 800 mm diameter

with optional water-

proof-ing connection

flange

Connection system

The new chambers

allows simple and fully

watertight connections

of the chamber com-

ponents

Modular system

Sectional chamber

components available

in250mmand500mm

heights

Groundwater resistant

For installation in up to

3000 mm of groundwater

Pressure outlet

connection

Quick-release,

no tools required

Pressure outlet

Ø 90 mm

Backwater flap

closure system

Available with up to two

motorized backwater

flaps for maximum

backwater protection
