2.2 Hybrid lifting stations

Catalogue EN 4.1

KESSEL AG

This is how it’s done

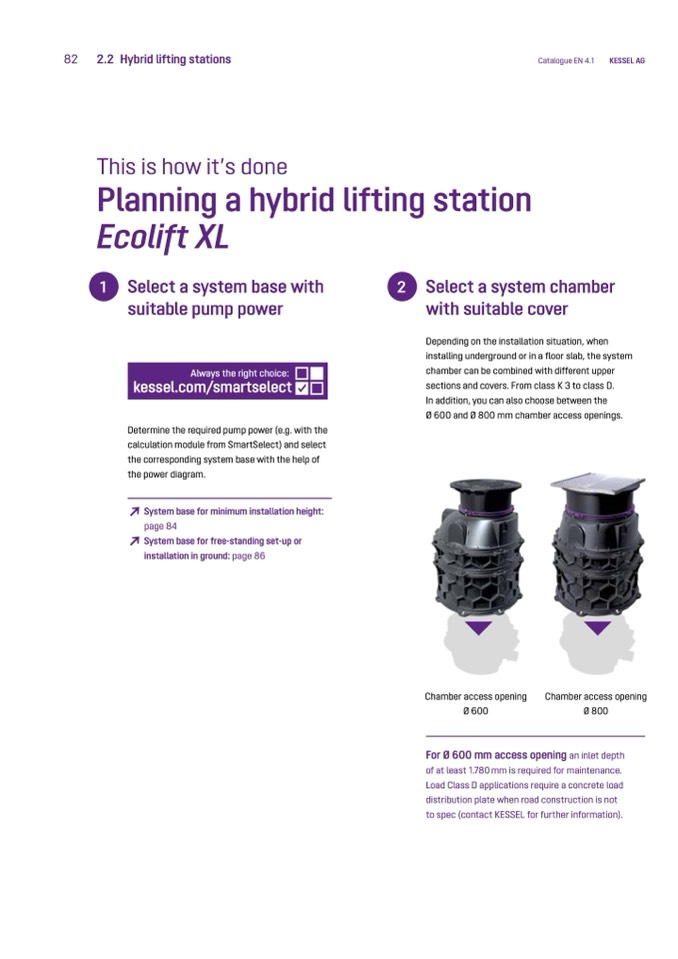

Planning a hybrid lifting station

Ecolift XL

1 Select a system base with

suitable pump power

Determine the required pump power (e.g. with the

calculation module from SmartSelect) and select

the corresponding system base with the help of

the power diagram.

↗

System base for minimum installation height:

page 84

↗

System base for free-standing set-up or

installation in ground: page 86

2 Select a system chamber

with suitable cover

Depending on the installation situation, when

installing underground or in a floor slab, the system

chamber can be combined with different upper

sections and covers. From class K 3 to class D.

In addition, you can also choose between the

Ø 600 and Ø 800 mm chamber access openings.

Always the right choice:

kessel.com/smartselect

Chamber access opening

Ø 600

Chamber access opening

Ø 800

For Ø 600 mm access opening an inlet depth

of at least 1.780 mm is required for maintenance.

Load Class D applications require a concrete load

distribution plate when road construction is not

to spec (contact KESSEL for further information).
