2.2 Hybrid lifting stations

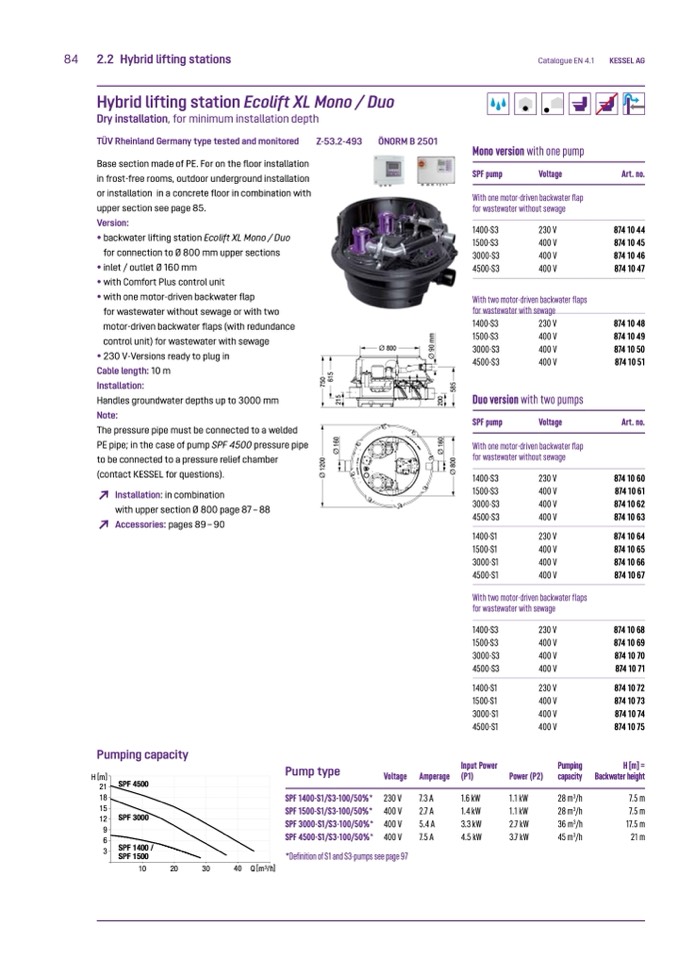

Hybrid lifting station Ecolift XL Mono / Duo

Catalogue EN 4.1

Mono version with one pump

SPF pump

Voltage

With one motor-driven backwater flap

for wastewater without sewage

1400-S3

230 V

1500-S3

400 V

3000-S3

400 V

4500-S3

400 V

With two motor-driven backwater flaps

for wastewater with sewage

1400-S3

230 V

1500-S3

400 V

3000-S3

400 V

4500-S3

400 V

Duo version with two pumps

SPF pump

Voltage

With one motor-driven backwater flap

for wastewater without sewage

1400-S3

230 V

1500-S3

400 V

3000-S3

400 V

4500-S3

400 V

1400-S1

230 V

1500-S1

400 V

3000-S1

400 V

4500-S1

400 V

With two motor-driven backwater flaps

for wastewater with sewage

KESSEL AG

Art. no.

874 10 44

874 10 45

874 10 46

874 10 47

874 10 48

874 10 49

874 10 50

874 10 51

Art. no.

874 10 60

874 10 61

874 10 62

874 10 63

874 10 64

874 10 65

874 10 66

874 10 67

874 10 68

874 10 69

874 10 70

874 10 71

874 10 72

874 10 73

874 10 74

874 10 75

H [m] =

Backwater height

7.5m

7.5m

17.5m

21m

Dry installation, for minimum installation depth

TÜV Rheinland Germany type tested and monitored

Base section made of PE. For on the floor installation

in frost-free rooms, outdoor underground installation

or installation in a concrete floor in combination with

upper section see page 85.

Version:

• backwater lifting station Ecolift XL Mono / Duo

for connection to Ø 800 mm upper sections

• inlet / outlet Ø 160 mm

• with Comfort Plus control unit

• with one motor-driven backwater flap

for wastewater without sewage or with two

motor-driven backwater flaps (with redundance

control unit) for wastewater with sewage

• 230 V-Versions ready to plug in

Cable length: 10 m

Installation:

Handles groundwater depths up to 3000 mm

Note:

The pressure pipe must be connected to a welded

PE pipe; in the case of pump SPF 4500 pressure pipe

to be connected to a pressure relief chamber

(contact KESSEL for questions).

↗

Installation: in combination

with upper section Ø 800 page 87 – 88

↗

Accessories: pages 89 – 90

Z-53.2-493

ÖNORM B 2501

Ø

1

2

0

0

7

5

0

6

1

5

Ø

8

0

0

5

8

5

Ø

1

6

0

2

1

5

Ø

1

6

0

2

0

0

Ø

9

0

m

m

Pumping capacity

1400-S3

1500-S3

3000-S3

4500-S3

1400-S1

1500-S1

3000-S1

4500-S1

Input Power

(P1)

1.6 kW

1.4 kW

3.3 kW

4.5 kW

230 V

400 V

400 V

400 V

230 V

400 V

400 V

400 V

Power (P2)

1.1 kW

1.1 kW

2.7kW

3.7kW

Pumping

capacity

28 m

3

/h

28 m

3

/h

36 m

3

/h

45 m

3

/h

H [m]

21

18

15

12

9

6

3

SPF 4500

SPF 3000

SPF 1400 /

SPF 1500

Pump type

SPF 1400-S1/S3-100/50%*

SPF 1500-S1/S3-100/50%*

SPF 3000-S1/S3-100/50%*

SPF 4500-S1/S3-100/50%*

Voltage

230 V

400 V

400 V

400 V

Amperage

7.3A

2.7A

5.4 A

7.5A

10

20

30

40

Q [m

3

/h]

*Definition of S1 and S3-pumps see page 97

Ø 800
