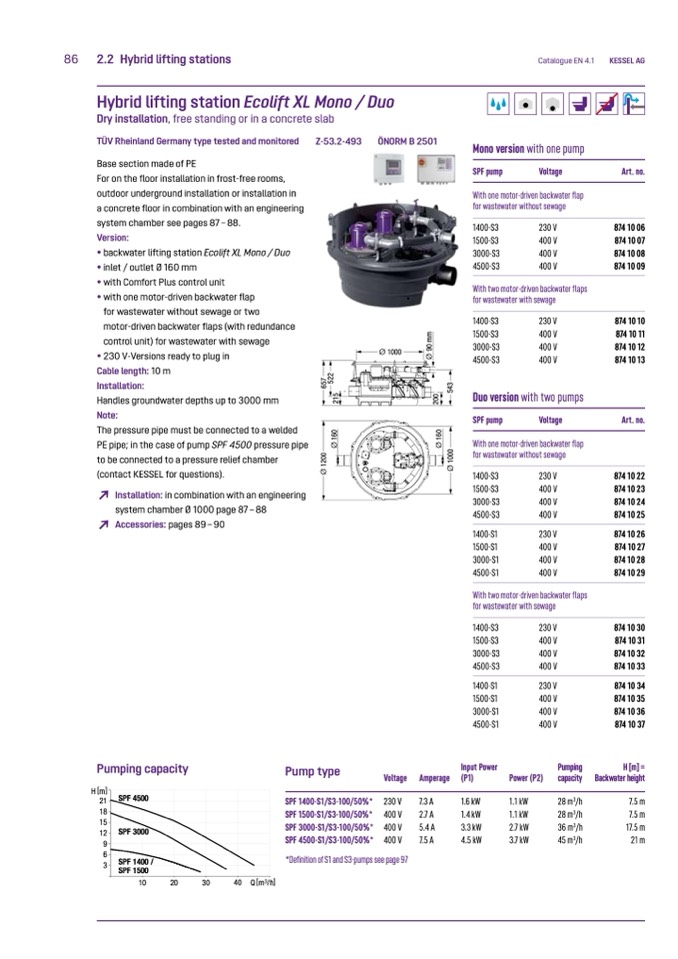

86 2.2 Hybrid lifting stations

Hybrid lifting station Ecolift XL Mono / Duo

Catalogue EN 4.1

Mono version with one pump

SPF pump

Voltage

With one motor-driven backwater flap

for wastewater without sewage

1400-S3

230 V

1500-S3

400 V

3000-S3

400 V

4500-S3

400 V

With two motor-driven backwater flaps

for wastewater with sewage

1400-S3

230 V

1500-S3

400 V

3000-S3

400 V

4500-S3

400 V

Duo version with two pumps

SPF pump

Voltage

With one motor-driven backwater flap

for wastewater without sewage

1400-S3

230 V

1500-S3

400 V

3000-S3

400 V

4500-S3

400 V

1400-S1

230 V

1500-S1

400 V

3000-S1

400 V

4500-S1

400 V

With two motor-driven backwater flaps

for wastewater with sewage

KESSEL AG

Art. no.

874 10 06

874 10 07

874 10 08

874 10 09

874 10 10

874 10 11

874 10 12

874 10 13

Art. no.

874 10 22

874 10 23

874 10 24

874 10 25

874 10 26

874 10 27

874 10 28

874 10 29

874 10 30

874 10 31

874 10 32

874 10 33

874 10 34

874 10 35

874 10 36

874 10 37

H [m] =

Backwater height

7.5m

7.5m

17.5m

21m

Dry installation, free standing or in a concrete slab

TÜV Rheinland Germany type tested and monitored

Base section made of PE

For on the floor installation in frost-free rooms,

outdoor underground installation or installation in

a concrete floor in combination with an engineering

system chamber see pages 87 – 88.

Version:

• backwater lifting station Ecolift XL Mono / Duo

• inlet / outlet Ø 160 mm

• with Comfort Plus control unit

• with one motor-driven backwater flap

for wastewater without sewage or two

motor-driven backwater flaps (with redundance

control unit) for wastewater with sewage

• 230 V-Versions ready to plug in

Cable length: 10 m

Installation:

Handles groundwater depths up to 3000 mm

Note:

The pressure pipe must be connected to a welded

PE pipe; in the case of pump SPF 4500 pressure pipe

to be connected to a pressure relief chamber

(contact KESSEL for questions).

↗

Installation: in combination with an engineering

system chamber Ø 1000 page 87 – 88

↗

Accessories: pages 89 – 90

Z-53.2-493

ÖNORM B 2501

Ø

1

2

0

0

6

5

7

2

1

5

5

2

2

Ø

1

0

0

0

5

4

3

Ø

1

6

0

Ø

1

6

0

2

0

0

Ø

9

0

m

m

Pumping capacity

Pump type

SPF 1400-S1/S3-100/50%*

SPF 1500-S1/S3-100/50%*

SPF 3000-S1/S3-100/50%*

SPF 4500-S1/S3-100/50%*

Voltage

230 V

400 V

400 V

400 V

Amperage

7.3A

2.7A

5.4 A

7.5A

1400-S3

1500-S3

3000-S3

4500-S3

1400-S1

1500-S1

3000-S1

4500-S1

Input Power

(P1)

1.6 kW

1.4 kW

3.3 kW

4.5 kW

230 V

400 V

400 V

400 V

230 V

400 V

400 V

400 V

Power (P2)

1.1 kW

1.1 kW

2.7kW

3.7kW

Pumping

capacity

3

28m/h

28 m

3

/h

36 m

3

/h

45 m

3

/h

H [m]

21

18

15

12

9

6

3

SPF 4500

SPF 3000

SPF 1400 /

SPF 1500

*Definition of S1 and S3-pumps see page 97

10

20

30

40

Q [m

3

/h]

Ø 1000
