Kessel - 4.1

KESSEL AG

Catalogue EN 4.1

2.2 Hybrid lifting stations

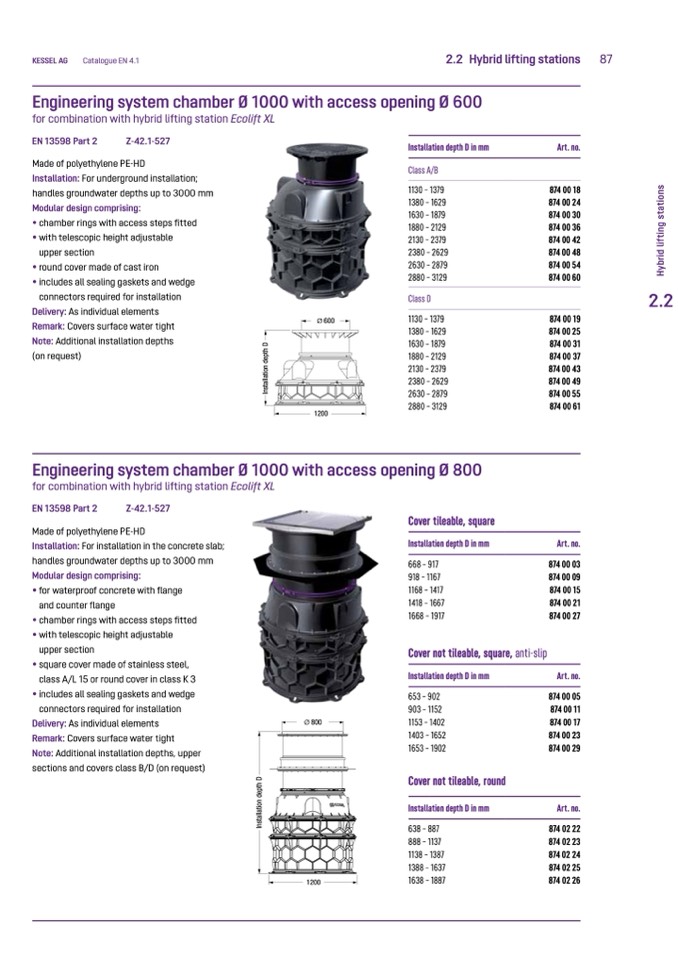

87 Engineering system chamber Ø 1000 with access opening Ø 600

for combination with hybrid lifting station Ecolift XL

EN 13598 Part 2

Z-42.1-527

Made of polyethylene PE-HD

Installation: For underground installation;

handles groundwater depths up to 3000 mm

Modular design comprising:

• chamber rings with access steps fitted

• with telescopic height adjustable

upper section

• round cover made of cast iron

• includes all sealing gaskets and wedge

connectors required for installation

Delivery: As individual elements

Remark: Covers surface water tight

Note: Additional installation depths

(on request)

Engineering system chamber Ø 1000 with access opening Ø 800

for combination with hybrid lifting station Ecolift XL

EN 13598 Part 2

Z-42.1-527

Made of polyethylene PE-HD

Installation: For installation in the concrete slab;

handles groundwater depths up to 3000 mm

Modular design comprising:

• for waterproof concrete with flange

and counter flange

• chamber rings with access steps fitted

• with telescopic height adjustable

upper section

• square cover made of stainless steel,

class A/L 15 or round cover in class K 3

• includes all sealing gaskets and wedge

connectors required for installation

Delivery: As individual elements

Remark: Covers surface water tight

Note: Additional installation depths, upper

sections and covers class B/D (on request)

Ø 800

Cover tileable, square

Installation depth D in mm

668 – 917

918 – 1167

1168 – 1417

1418 – 1667

1668 – 1917

Cover not tileable, square, anti-slip

Installation depth D in mm

653 – 902

903 – 1152

1153 – 1402

1403 – 1652

1653 – 1902

Cover not tileable, round

Installation depth D in mm

638 – 887

888 – 1137

1138 – 1387

1388 – 1637

1638 – 1887

1200

Ø 600

1200

Installation depth D in mm

Class A/B

1130 – 1379

1380 – 1629

1630 – 1879

1880 – 2129

2130 – 2379

2380 – 2629

2630 – 2879

2880 – 3129

Class D

1130 – 1379

1380 – 1629

1630 – 1879

1880 – 2129

2130 – 2379

2380 – 2629

2630 – 2879

2880 – 3129

Art. no.

874 00 18

874 00 24

874 00 30

874 00 36

874 00 42

874 00 48

874 00 54

874 00 60

874 00 19

874 00 25

874 00 31

874 00 37

874 00 43

874 00 49

874 00 55

874 00 61

Art. no.

874 00 03

874 00 09

874 00 15

874 00 21

874 00 27

Art. no.

874 00 05

874 00 11

874 00 17

874 00 23

874 00 29

Art. no.

874 02 22

874 02 23

874 02 24

874 02 25

874 02 26
